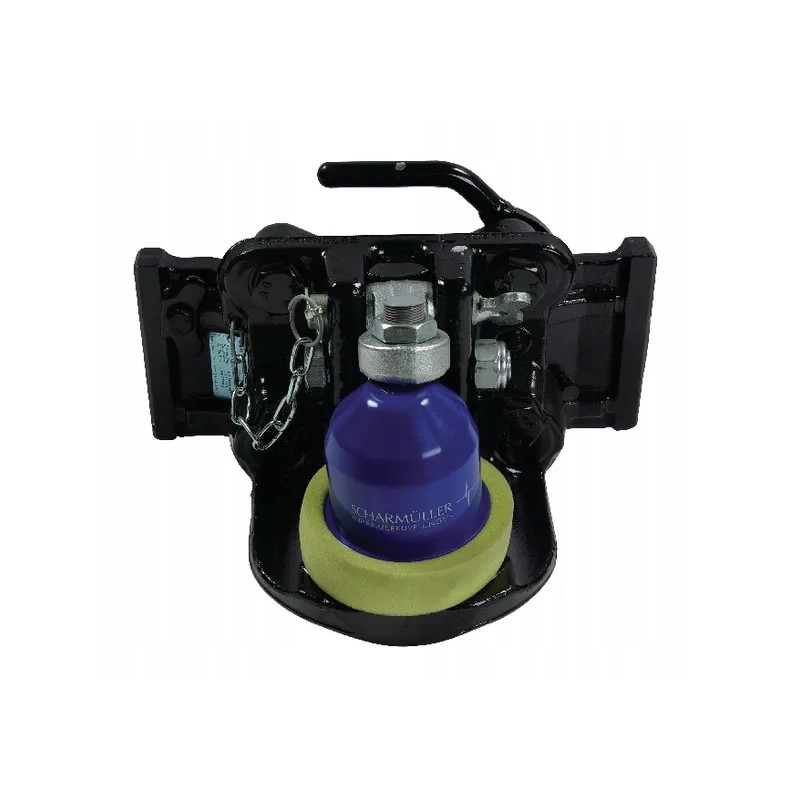

Ball hitch 325 mm

Ball hitch 325 mm

Part number: K. 05632533A02

EAN:

Unit: Piece

Application:

Couplings with the following ABG type approval markings should be connected:

M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712, as well as with ball couplings according to ISO 24347.< p>

Features: Optional retrofitting of a rear wheel steering system (right, left, both sides)

Benefits:

Optimum driving comfort thanks to the minimum distance between the tractor and the trailer.< p>

High support load

Larger axial and vertical torsion angle than Piton-Fix and finger couplings

Less wear and long life

Guide width: 325mm

Track/guide thickness: 26mm

Adapter plate height: 133mm

Locking pin outer diameter: 25mm

Max. pulling load: 83.9kN

Max. vertical load: 2000kg

Color: Black

Type: K80 manual

Diameter thread: M20

Spacing of mounting holes min.: 80mm

Spacing of mounting holes max.: 140mm

Working length: 177mm

Product fits machines:

New Holland Series T 7500 T 7510, T 7520, T 7530, T 7540, T 7550

Series TVT TVT 135, TVT 145, TVT 155, TVT 170 , TVT 190, TVT 195

Steyr Series 6000 CVT 6135 CVT, 6140 CVT, 6155 CVT, 6170 CVT, 6175 CVT, 6190 CVT, 6195 CVT, 6135 CVT, 6140 CVT, 6155 CVT, 6170 CVT, 6175 CVT, 6190 CVT, 6195 CVT

Series 9000 M / MT 9080 M, 9080 M, 9080 MT, 9080 MT, 9085 MT, 9085 MT, 9090 M, 9090 M, 9090 MT, 9090 MT, 9095 MT, 9095 MT, 9100 M, 9100 M, 9100 MT, 9100 MT, 9105 MT, 9105 MT, 9080 M, 9080 MT, 9085 MT, 9090 M, 9090 MT, 9095 MT, 9100 M, 9100 MT , 9105 MT
