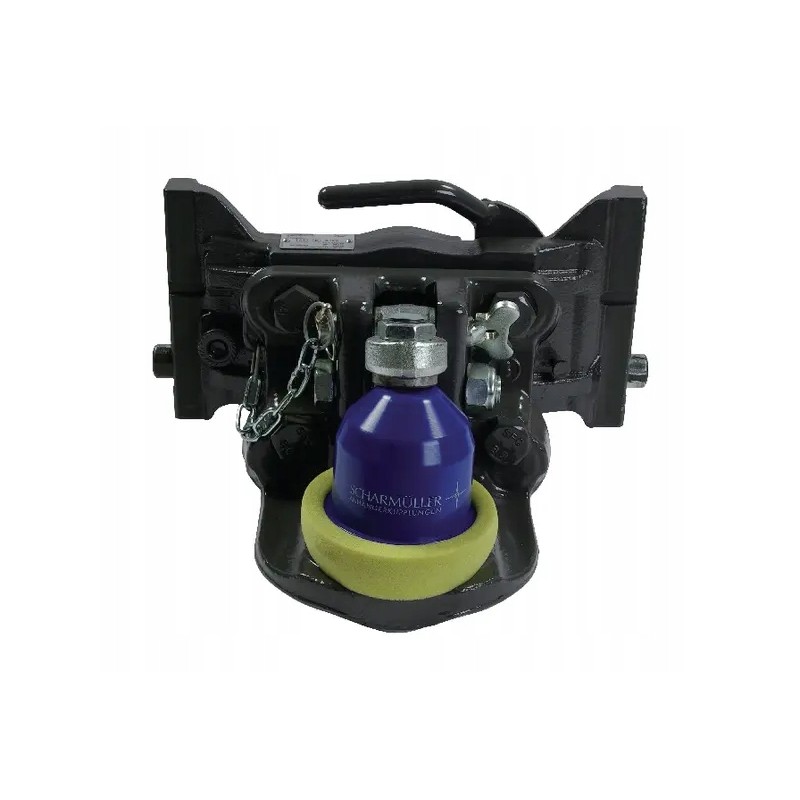

K80 ball transport hitch 330 mm

Transport hitch, ball, K80 330 mm

Part number: K. 07633042A02

EAN:

Unit: Piece

Application: < p>

Couplings with the following ABG type approval markings should be connected:

M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712, as well as with ball couplings according to ISO 24347.

Features: Optional retrofitting with a rear wheel steering system (right, left, both sides)

Benefits:

Optimum driving comfort thanks to the minimum distance between the tractor and the trailer.

High support load

Larger axial and vertical turning angle than Piton-Fix and finger couplings

Less wear and long service life

Guide width: 330mm

Track/guide thickness: 32mm

Adapter plate height: 150mm

Locking pin outer diameter: 25mm

Max. pulling load: 89.3kN

Max. vertical load: 3000kg

Color: Black

Type: K80 manual

Thread diameter: M20

Spacing of mounting holes min.: 80mm

Spacing of mounting holes max.: 140mm

Working length: 155mm

The product fits machines:

New Holland Series T8.XXX- Tier 2 / 4A / 4B T8.275 - 4A, T8.275 CVT - 4A, T8.420 CVT - 4A

Steyr Series Kompakt Ecotech Tier 4 4075, 4075 HI-LO, 4085 - 3/2014, 4085 HI-LO - 3/2014, 4095, 4095 HI-LO, 4105, 4105 HI-LO, 4115

Series S Kompakt 4055 - 5/2014, 4055 - 9/2011, 4065 - 5/2014, 4065 - 9/2011
