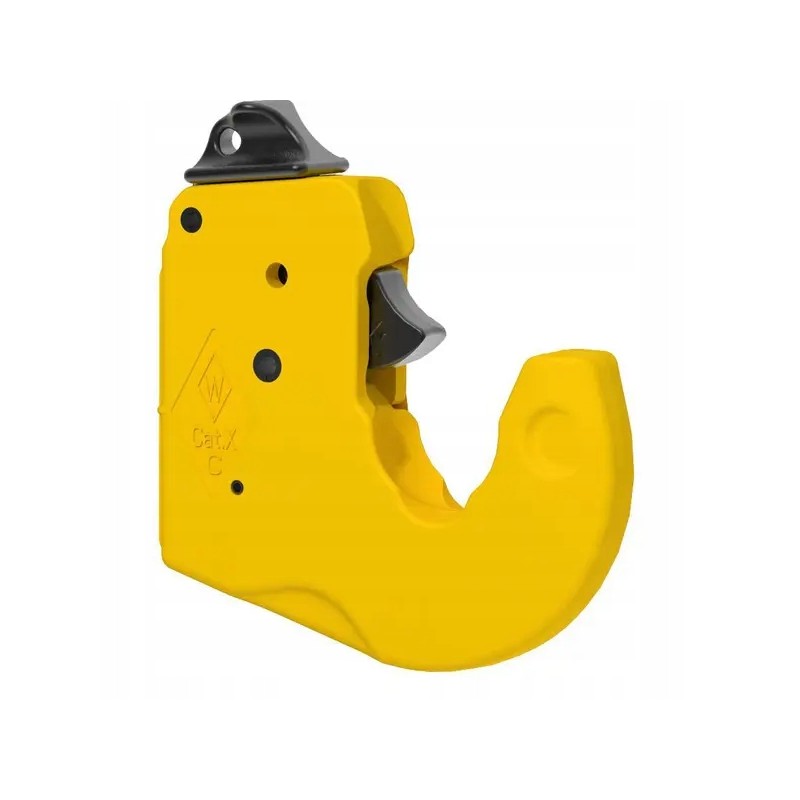

Hook connecting the lower link, category 1

Lower link coupling hook, cat.1

Part number: K. 1208552

EAN:

Unit: Piece

Specifications: < p>

Simple coupling thanks to centering inclinations

Safety lock prevents accidental opening

Compact design provides free space for equipment

Insensitivity to dirt thanks to the small amount parts and the dirt outlet

For complete locking, the locking pawl can be secured, for example, with an 8 x 50 screw.

Application:

Category 1: for tractors with an engine power of up to 40 kW (55 HP)

Category 2: for tractors with an engine power of up to 74 kW (100 HP)

Category 3L: for tractors with an engine power of up to 92 HP kW (125 HP)

Category 3: for tractors with an engine power of up to 165 kW (225 HP)

Category 4: for tractors with an engine power of up to 294 kW (400 HP)< p>

Properties: Made of high-strength steel

Benefits:

Adapted to absorb large traction, pressing and lateral forces

The special shape gives the necessary can be twisted

The mechanics inside the hook are protected against impacts and dirt

The automatic safety lock can only be released with the opening lever.

Automatic unlocking is excluded

Category: 1

Dhole diameter: 44mm

LDistance from the hole axis to the connection point: 105mm

BGickness: 28mm

Max. tractor power: 40kW

Related articles that you can find in our other offers:

Spare parts

Hook repair kit type C1 category 1, 2,2H 1202396

Lever type C1, cat. 1,2,2H 1202398

Hook repair kit, cat. 2 308515

Tension spring 308524

Alternative solutions

CBM Cat. 1 coupling hook 080001814
