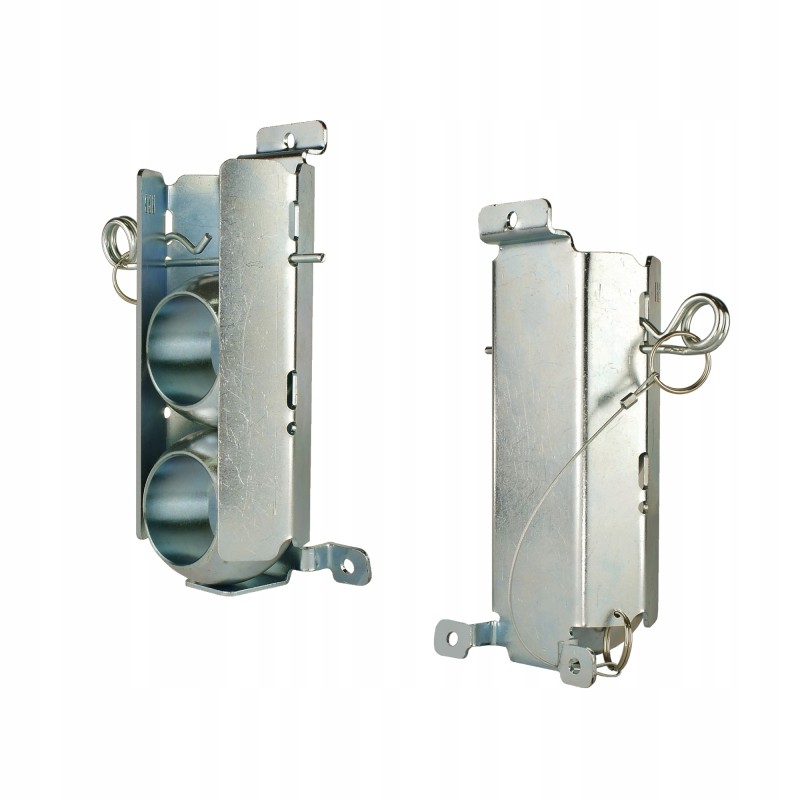

Magazine 2x ball for hook link, category 1 2 44x28x35

MAGAZINE FOR BALLS WITH TWO BALLS 44x28.4x35 1/2 CATEGORY AND FOR THREE-POINT SUSPENSION SYSTEM Production:

Original product of the Hydrolider brand, symbol: 2.00.18.312.1

Application:

The set has a wide range of applications in agriculture, horticulture, construction and industry.

The bracket allows for storage balls in a safe and designated place on the tractor, machine or wall in a garage or machinery park.

A ball without a guide collar allows for quick connection and disconnection of machines from the tractor. Used in the hook mounting system for the lower link of the CBM category 1/2.

Installation:

Example photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

Technical data:

Set composition:

Magazine

Two balls

Cable

Securing pin

STORAGE: Bracket material: 2 mm thick galvanized sheet

Total height of the bracket: 153 mm

Total width of the bracket: 72 mm

Total thickness of the bracket: 53 mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 44 mm

Marking of the ball category on the bracket: YES

BALLS:

Material: SAE 1020 (hardened steel)

Inner diameter: 28.4mm

Outer diameter: 44mm

Length: 35mm
