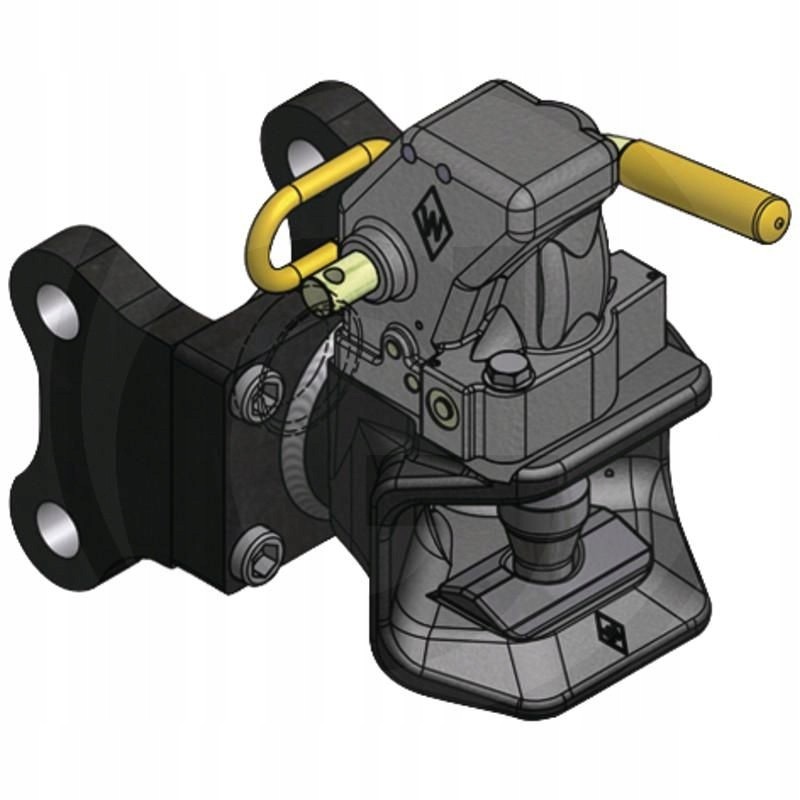

Hitch set, reinforced version 3405652r93 90285c91

Hitch set reinforced version 3405652R93, 90285C91, 8004202 Walterscheid

Walterscheid Hitch set

Available, among others: fits CASE Trailer hitches - version with automatic head

- Types : 743, 644, 744, 745 S, 844, 844 S, 845, 955, 1055, 743 XL, 745 XL, 844 XL, 845 XL, 856 XL, 956 XL, 1056 XL

Technical data :

Hitch pin (mm): 37, Internal width. (mm): 105/120, Width (mm): 170, Pin-Ø, (mm): 25, Load (kg): 1200, D-value (kN): 59.0, Hitch eye: DIN 11026, 74054 < p>

(ISO 8755) = 40 mm, Hole spacing (mm): 108, Description: Die Kupplung ist do zwei verschiedenen Montagesituationen geeignet. Standardmäßig ist to Halterungen am Fahrzeug with 120 mm Abstand aufgebaut.

Durch Vertauschen der rechten und linken Lagerplatte bei der Montage kann sie auch do Halterungen z 105 mm Abstand verwendet werden, Weight: 22.40 kg, Photo no.: 2

Comparison numbers: 3405652R93, 90285C91, 8004202

Manufacturer: Walterscheid
