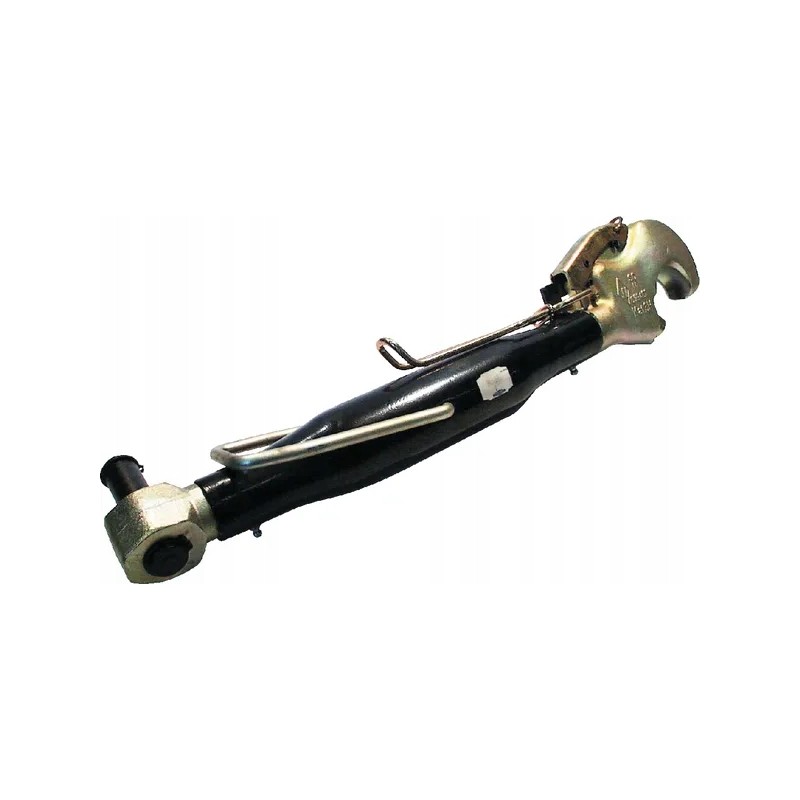

Top connector with mounting hook, angle 3, Walter

Top connector with mounting hook, cat. 3, Walterscheid

Part number: K. 200190

EAN: 8432970166554

Unit: Piece

Application:

Cat. 2 for tractors with power up to 74 KW

Cat. 3 for tractors with power up to 135 KW

Technical information:

Note: the upper connector consists of two parts, the fork head (figure 1) must be ordered separately

Given size D min./max. means the length at the measured distance from the center

Connection category: Eye - hook

Category on the tractor side: 3

Category on the machine side: 3

Pipe length: 360mm

Min. working length: 522mm

Max. working length: 752mm

Thread type: Metric

Thread diameter: M36

Thread pitch: 3.00mm

Connection hole diameter on the tractor side: 32mm

Connection hole diameter on the machine side: 32mm
