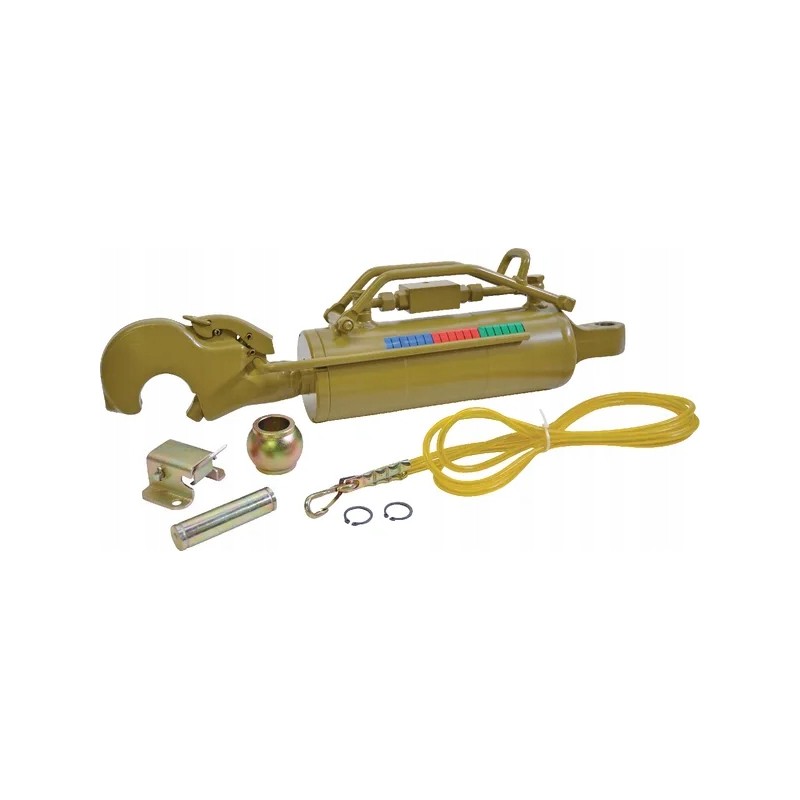

Top connector, hydraulic hook with ball, cat. 3, oe 90

Hydraulic upper connector, hook with ball cat.3, Ø 90 mm

Part number: K. 309538

EAN: 8435194023436

Unit: Piece

Specifications:

Long service life

All elements replaceable independently

Application: For tractors with power up to 147kW / 200KM

Benefits:

Versatile in use by installing various fork heads

Valve block protection with a specially reinforced bow

Mounting type - piston rod side: Hook

Mounting type - cylinder side: No mounting element

Mounting category - piston rod side: 3

Mounting category - cylinder side: 3

Consists of :

Completely equipped with bar and marking sticker as well as ball, cable, bracket and handle on the tractor side

Without hose set

Note: fork head must be ordered separately !

L minMin length: 562mm

L maxMax length: 747mm

L3 Stroke: 185mm

Cylinder bore diameter: 90mm< p>

Outer diameter: 110mm

Mounting hole diameter - piston rod side: 32.2mm

Max. tractor power: 147kW
