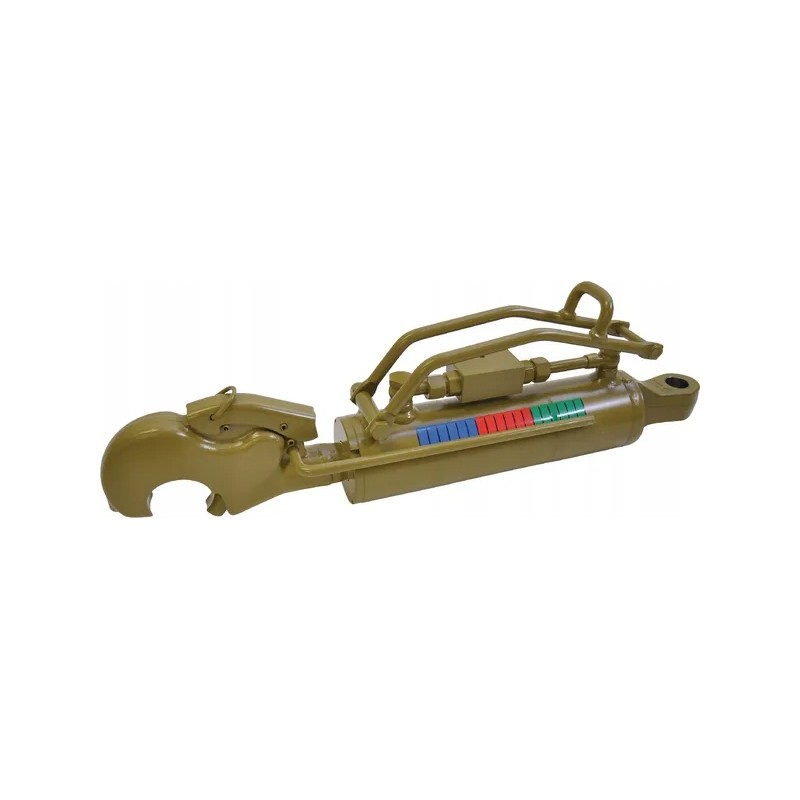

Upper link, hydraulic hook with ball, cat. 3, 2 oe

Hydraulic upper connector, hook with ball cat. 3/2, Ø 70 mm

Part number: K. 309536

EAN: 8435194023412

Unit: Piece< p>

Specifications:

Long service life

All elements replaceable independently

Application: For tractors with power up to 110 kW / 150 HP

Benefits:

Versatile in use by installing various fork heads

Valve block protection with a specially reinforced bow

Mounting type - piston rod side: Hook

Mounting type - cylinder side: No mounting element

Mounting category - piston rod side:

3

2

Mounting category - cylinder side: 3

Consisting of:

Completely equipped with a bar and marking sticker as well as a ball, cable, bracket and handle on the tractor side

Without hose set

Note: fork head must be ordered separately!

L minMin length: 537mm

L maxMax length: 732mm

L3 Stroke: 185mm

Cylinder bore diameter: 70mm

Outer diameter: 85mm

Mounting hole diameter - piston rod side: 25.4mm

Max tractor power: 110kW
