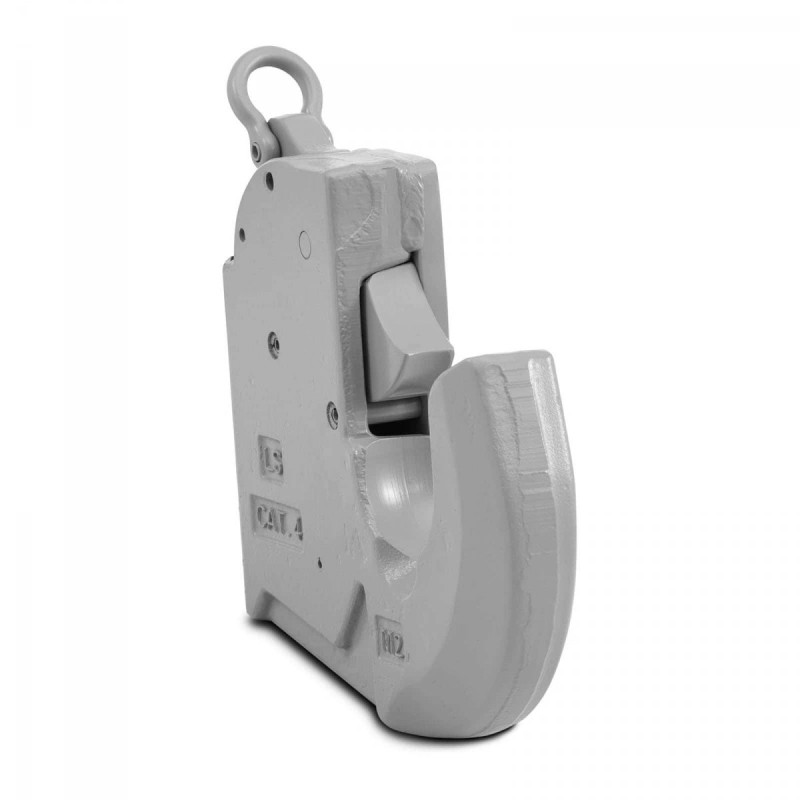

Lower link hook hook hook 178 ama 95004

15012683747891
expondo
£319.88
Quantity
5 Items

Description
Lower link hook - hook engagement distance 178 mm - 294 kW (400 HP) - cat. 4 AMA 10420022 95004 During hard work, at some point even the best hook will wear out. Good thing there is a suitable replacement from AMA, the agricultural range expert! Check out the practical hook of the lower link. Solid construction and easy operation convince users of Ursus, Zetor, Belarus, Fendt, John Deere, Massey Ferguson, New Holland and many other tractors to purchase it.

Technical data:

hole diameter [mm] 85

Category 4

Thickness [mm] 50

Material Steel

Max. tractor power 294 kW (400 HP)

Distance from the center of the hole to the connection point [mm] 178

Dimensions (LxWxH) [cm] 25.5 x 25 x 5

Weight [kg] 13.3

Shipping dimensions (LxWxH) [cm] 29.5 x 28 x 8.5

Shipping weight [kg] 13.7

Replacing the drawbar hook lower is extremely easy if you have the right welding skills. Separate the old one from the lower connector using a plasma or conventional cutter and weld the new hook. When choosing a hook, pay attention to the thickness of the material: 50 mm. Weld the hook on the left or right lower link.

The hitch hook for the lower links corresponds to category 4 and is intended for tractors with a power of 294 kW (400 HP). The solid steel construction withstands even high tensile, compressive and lateral forces, so you can easily perform all typical hook attachment work.

Thanks to the latch, the attachment will be held very effectively. When choosing our hook, please note that the U-shaped hole in the latch holder is 85 mm in diameter and is 178 mm from the center of the welding point.

Key information:

Compatibility – for Ursus, Zetor, Belarus, Fendt, John Deere, Massey Ferguson, New Holland and many other tractor models

Optimality - corresponds to class 4 for tractors up to 294 kW (400 HP)

Effectiveness - it can be firmly welded to the bottom connector

Safety - the quick connector reliably holds the equipment in the 85 mm hole

Robust - the strong 85 mm wide structure can withstand even very heavy loads

Product Details
expondo
15012683747891
10420022
5 Items
New

Data sheet

Manufacturer
expondo
Part Number
10420022
Product weight with unit packaging
13.7 kg
