Hydraulic central connector c 330 c 360 nt

Central hydraulic connector NT C-330 C-360 MIZAR number: 71238

UPPER HYDRAULIC CENTRAL CONNECTOR FOR URSUS C-330, C-360 and C-360-3P TRACTORS Producer: HYDROLIDER Ready-made kit for installation on the machine .

Designed for URSUS C-330, C-360 and C-360-3P tractors

The connector is mounted instead of the standard central connector.

Enables hydraulic lifting and lowering machines suspended on the tractor's three-point suspension system.

Connector made of high-quality steel.

Dimensions: Length: 520mm (compounded actuator)

Actuator stroke: 275mm< p>

Maximum length: 795mm (520mm + 275mm = 795mm)

Inner diameter of the eyelet/ball: 25.4mm

Outer diameter of the ear: 76mm

Ear width: 51mm

Piston rod outer diameter: 60mm

Piston diameter: 30mm

Connections: 3/8'

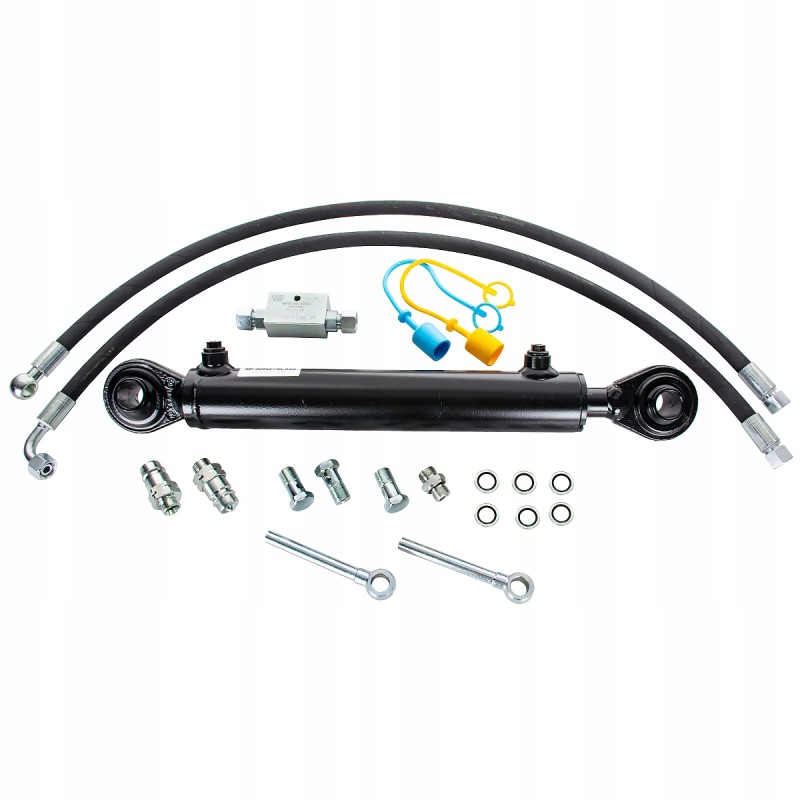

W the set includes: double-acting cylinder 50-30H275L520

hydraulic valve securing the 'lock'

two hydraulic hoses (1 pc. 100cm)

two quick connectors, new type Euro ISO plugs

⚠️The set requires self-assembly on the machine. If you have manual skills and a little patience, you can install the connector on the machine without any problems.⚠️MIZAR number: 71238
