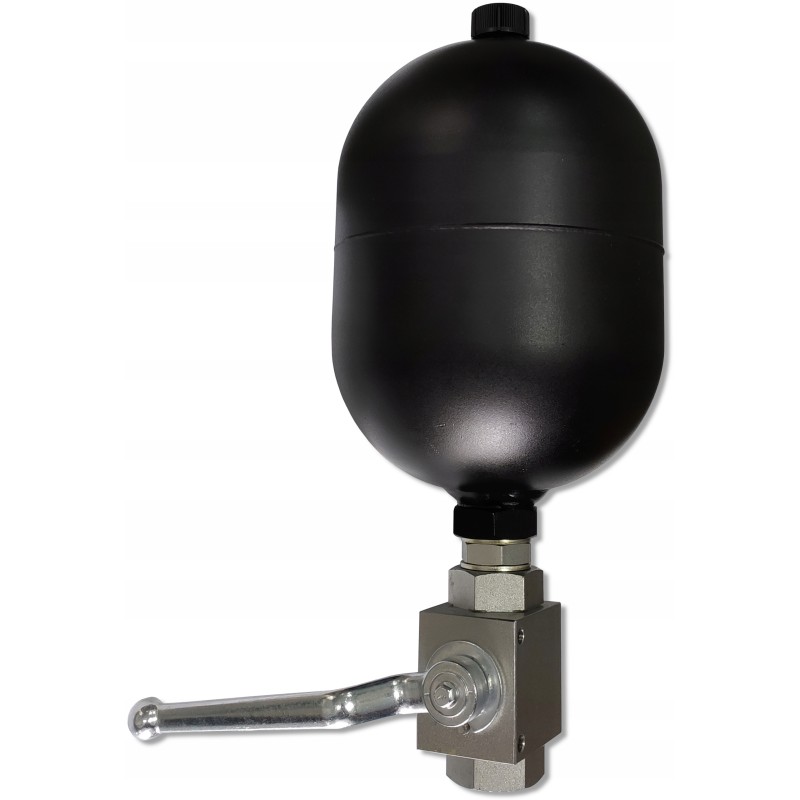

Hydroaccumulator shock absorber 2l ball valve 3 4

Hydraulic shock absorber MEMBRANE hydroaccumulator AD 2LKODE SKRAW-MET: [8311]AT THE CUSTOMER'S REQUEST, ADJUSTMENT TO THE INDICATED PRESSURE - FREE

It is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

They are used in TUR front loaders, agricultural machines, plows, aggregates, construction machines, cranes, etc., i.e. machines exposed to sudden changes in pressure in the hydraulic system.

Role of the hydraulic accumulatorThe purpose of the accumulator is to store oil under pressure in the hydraulic system and to reactivate it when necessary to dampen shocks and limit pressure surges.

Its main function is performed in the following aspects:As auxiliary power

For an emergency power source

Replenishing losses and maintaining constant pressure

Absorption of hydraulic shocks

Absorption of pulsations and noise reduction

The hydraulic accumulator mainly consists of a hydraulic element and a gas element with a gas-tight separator. The oil part is connected to the hydraulic flow path. When the pressure increases, the gas is compressed and the liquid flows into the hydraulic accumulator. When the pressure drops, the compressed gas expands and releases the saved fluid into the pipeline. Hydroaccumulators should be selected according to the following relationships: What will be its function in the hydraulic system?

The capacity of the hydroaccumulator increases in proportion to the capacity of the cylinders.

The greater the load on the cylinders, the greater the pressure in the hydroaccumulator.

Technical specifications: The hydroaccumulators are factory-filled with nitrogen at a pressure of 60 bar. They have a built-in mechanism that allows you to safely and easily reduce the nitrogen pressure according to your needs.

Internal thread in the body: G3/4'

Total capacity of the shock absorber: 2L

Body material: cast iron

Temperature range: Permissible ambient temperature: -30 C to +80 C

Permissible oil temperature: -30 C to +80 C

Oil type: Mineral oil-based hydraulic oil

2-way 3/4' hydraulic ball valve The valve closes or opens the oil flow in a single hydraulic circuit.

The valves are durable and reliability over many years of use at high pressure.

Symbol: VH2V-G3/4
