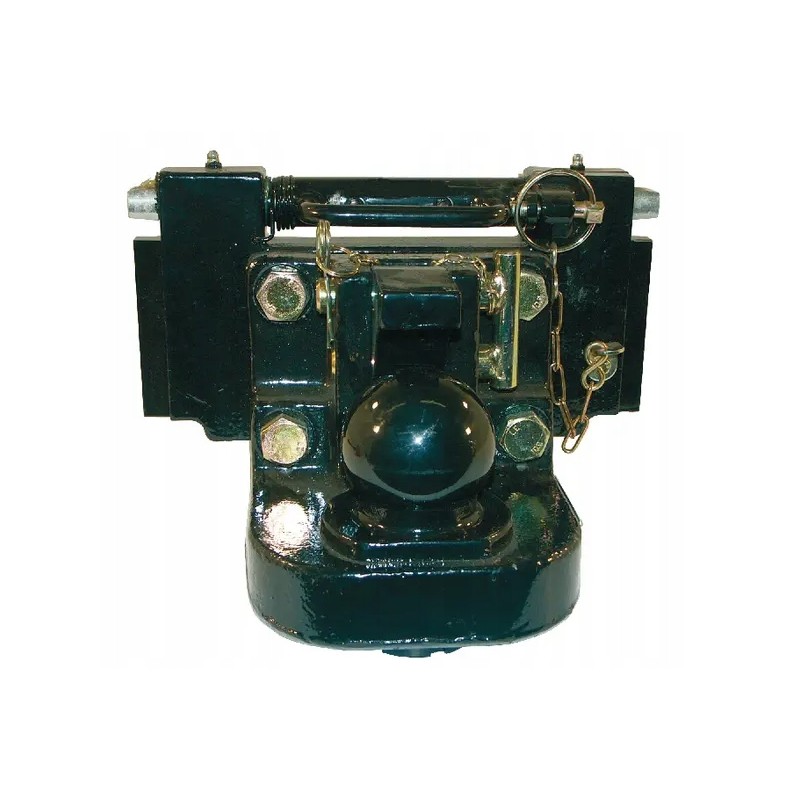

Ball transport hitch 320 mm

Transport hitch, ball, 320 mm

Part number: K. HS1250K

EAN:

Unit: Piece

Application:

Couplings with the following ABG type approval markings should be connected:

M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712, as well as with ball couplings according to ISO 24347.

Features: Optional retrofitting of the rear wheel steering system (right, left, both sides)

Benefits:

Optimum driving comfort thanks to the minimum distance between the tractor and trailer.

High support load

Larger axial and vertical turning angle than Piton-Fix and finger couplings

Less wear and long service life

Guide width: 320mm

Main pin outer diameter: 80mm

Max. pulling load: 92kN

Max. vertical load: 3500kg

Color: Black

Type: K80 manual

Thread diameter: M18

Spacing of mounting holes min.: 80mm

Spacing of mounting holes max.: 140mm

Manufacturer: Sauermann

The product fits machines:

New Holland Series T4 Powerstar T4.105 - 4A, T4.115 - 4A, T4.85 - 4A, T4.95 - 4A

Series T5 - Tier 4A / 4B T5.100 - 4B, T5.110 - 4B, T5.120 - 4B

Series T6.XXX Auto Command Tier 4B / Stage V T6.140 - 4B (7/13-12/15), T6.145 - 4B (3/15-), T6.145 - 4B (7/13- ), T6.150 - 4B (7/13-12/15), T6.155 - 4B (3/15-), T6.155 - 4B (7/13-), T6.160 - 4B (7/13 -12/15), T6.165 - 4B (3/15-), T6.165 - 4B (7/13-), T6.175 - 4B (3/15-), T6.175 - 4B (7/ 13-)

Series T7.XXX- AutoCommand Tier 4A / 4B / Stage V T7.175 - 4B, T7.190 - 4B, T7.210 - 4B, T7.225 - 4B, T7.230 - 4B, T7.260 - 4B, T7.270 - 4B

Series TD-5 TD5.105 - 4A, (10/14), TD5.115 - 4A, (10/14), TD5 .85 - 4A, (10/14), TD5.95 - 4A, (10/14)

Steyr Series 6000 CVT 6165 CVT, 6170 CVT, 6180 CVT, 6200 CVT, 6210 CVT, 6225 CVT , 6230 CVT, 6165 CVT, 6170 CVT, 6180 CVT, 6200 CVT, 6210 CVT, 6225 CVT, 6230 CVT

Series CVT 05-2015 6185 Tier 4B - 05/2015, 6200 Tier 4B - 05/ 2015, 6220 Tier 4B, 6240 Tier 4B - 05/2015, 6185 Tier 4B - 05/2015, 6200 Tier 4B - 05/2015, 6220 Tier 4B, 6240 Tier 4B - 05/2015

Series Compact Ecotech Tier 4 4075, 4075 HI-LO, 4085 - 3/2014, 4085 HI-LO - 3/2014, 4095, 4095 HI-LO, 4105, 4105 HI-LO, 4115

Related articles, which you can find in our other offers:

Alternative solutions

Transport hitch, ball, K80, 320 mm 03632046A02
