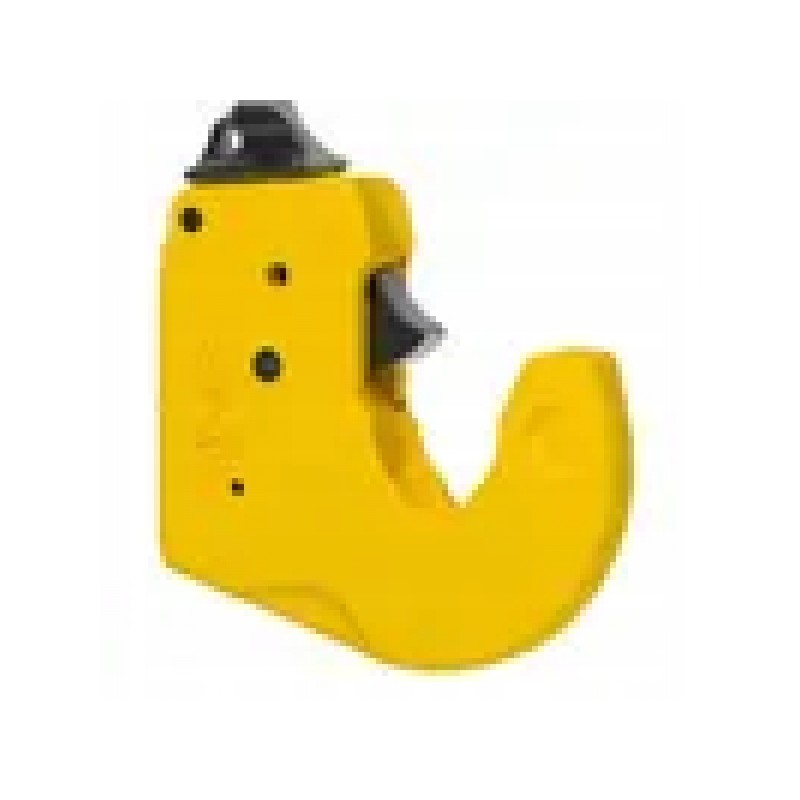

1208557 lower link coupling hook, category 4

Lower link coupling hook, category 4 INDEX: 1208557

Specifications: - Simple coupling thanks to centering slopes - Safety lock prevents accidental opening - Compact design provides free space for equipment - Insensitive to dirt thanks to the small number of parts and opening outlet for dirt - For full locking, the locking pawl can be secured, for example, with an 8 x 50 screw.

Benefits: - Adapted to absorb high traction, pressing and lateral forces - Special shape provides the necessary turning ability - Mechanics inside the hook is protected against impacts and dirt - The automatic safety lock can only be released with the opening lever. - Automatic unlocking is excluded

Properties: - Made of high-strength steel

Thickness: 50mm

Application: - Category 1: for tractors with engine power up to 40 kW (55 HP) - Category 2: for tractors with engine power up to 74 kW (100 HP) - Category 3L: for tractors with engine power up to 92 kW (125 HP) - Category 3: for tractors with an engine power of up to 165 kW (225 HP) - Category 4: for tractors with an engine power of up to 294 kW (400 HP)

Hole diameter: 85mm

Category: 4

Distance from the hole axis to the connection point: 180mm

Max tractor power: 294kW
