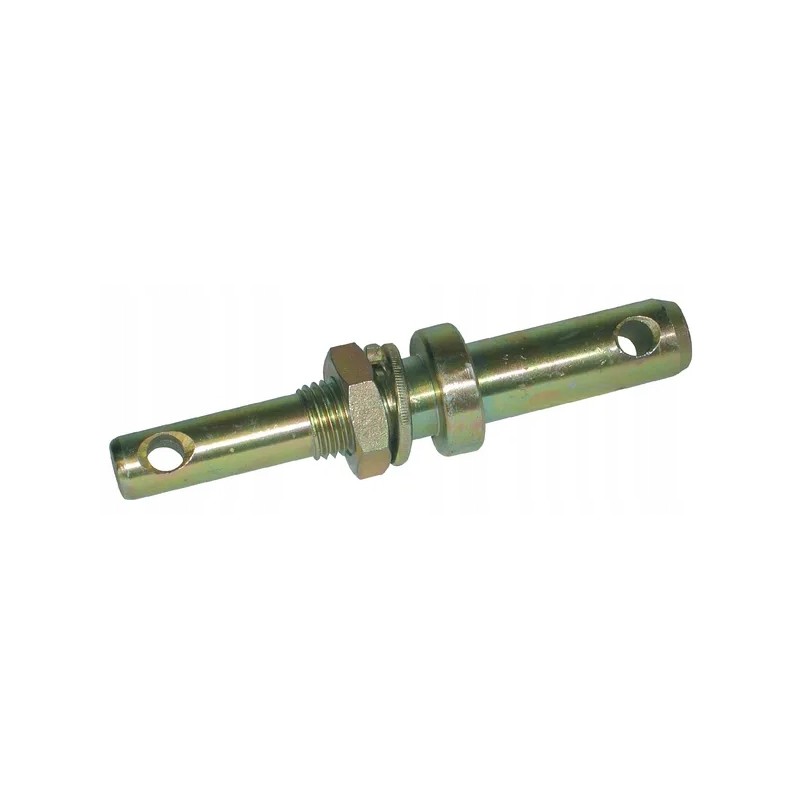

Lower link screw-on pin 28 22x200 mm ka

Lower link screw-on pin 28/22x200 mm cat.1/2 Kramp

Part number: K. Z428128KR

EAN: 8716106072095

Unit: Art

Features: Galvanized

A Pin outer diameter: 28mm Category:

1

2

Total length of the pin: 200mm Length: 53.3mm

Head diameter: 22mm

FHead height: 70mm

B,GDistance of hole from head:

58mm

55mm

Hole spacing: 155mm

Hhole diameter: 12mm

Thread type: UNF

Thread diameter: 1 inch

Number of threads per inch: 12

Fits pin: 22mm

Additional information:

A= 28 mm

B=58 mm

C= 200 mm

D= 22 mm

E=42 mm

F=71.85 mm

G=55 mm

H= 12 mm

(may contain inaccuracies or product changes)
