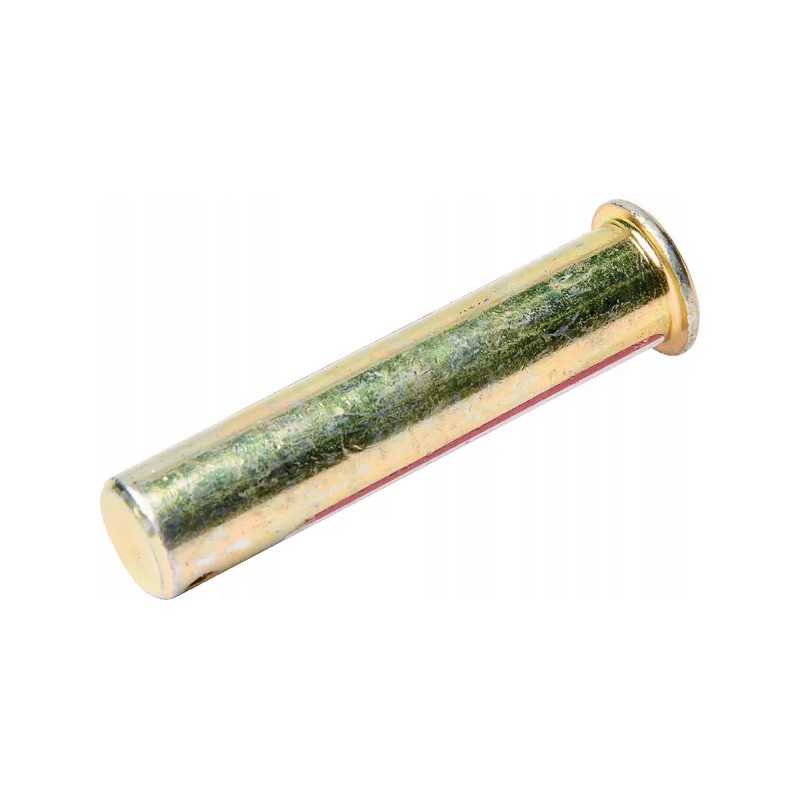

Pin 19x78 mm cat. 1 kramp

Pin 19x78 mm cat.1 Kramp

Part number: K. Z319078KR

EAN: 8716106070725

Unit: Piece

Application: For example for the upper connector in a tractor

Properties: Galvanized

APin outer diameter: 19mm

Category: 1

CTotal length of the pin: 93mm

Dlength: 87mm

Ehead diameter: 26mm

Bhole distance from the head: 78mm

Fhole diameter: 4mm

The product fits machines:

Massey Ferguson Series 1004 - 1134 1004, 1134 1004, 1134 1004, 1134 1004, 1134 1004

Series 1080 - 1100 1080, 1100 1080, 1100 1080, 1100 1080, 1100 1080

Series 130 - 152 133, 152 133, 152 133, 152 135, 152 135, 152 135, 152 148, 152 148, 152 148, 152 152, 152 152 , 152 152

Series 155 - 168 155, 168 155, 168 155, 168 158, 168 158, 168 158, 168 165, 168 165, 168 165, 168 168, 168 168, 168 168

Series 175 - 188 175, 188 175, 188 175, 188 178, 188 178, 188 178, 188 185, 188 185, 188 185, 188 188, 188 188, 188 188

Series 200 240, 240, 240, 250, 250, 250, 265, 265, 265, 275, 275, 275, 285, 285, 285, 290, 290, 290, 298, 298, 298

Series 35 - 65 65, 65 65

Series 390T- 1004T 1004T, 1004T 1004T, 1004T 1004T, 1004T 1004T, 1004T 1004T, 1004T 698T, 1004T 698T

Series 500 560, 565 , 575, 590, 595, 575, 590, 595

Series 600 675, 690, 698, 699, 675, 690, 698, 699
