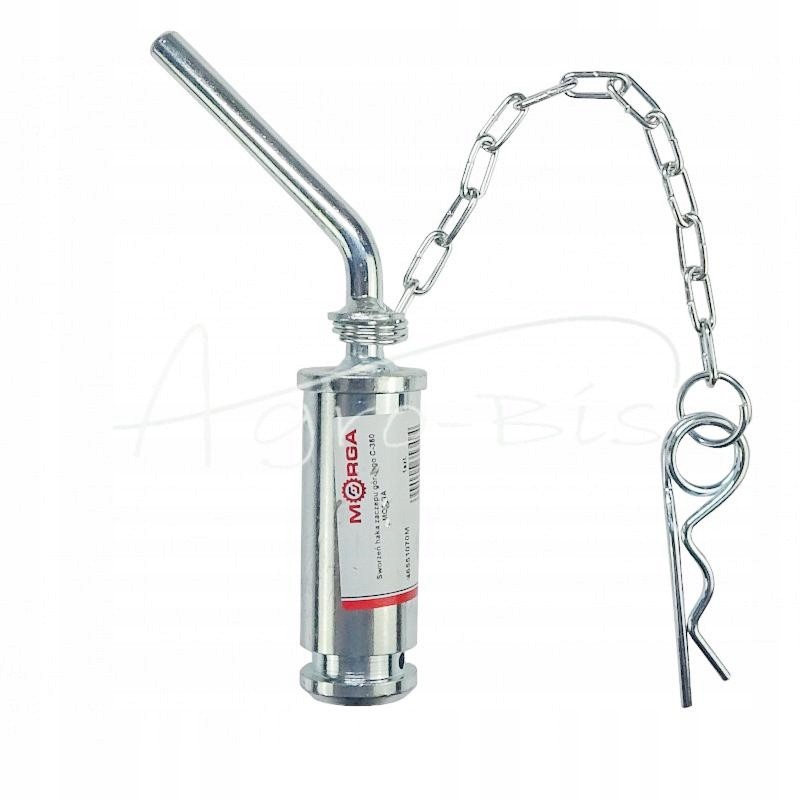

Upper hitch hook pin c 360 morga

Upper hitch hook pin C-360 MORGA Upper hitch hook pin C-360 MORGA The highest quality field hitch fork pin made of the best, certified, abrasion-resistant reinforced steel.

Technical data:

* Total length of the pin - 215 mm

* Total diameter - 41.6 mm

* Working diameter of the pin - 37.8 / 29.5 mm

* Hole diameter - 5.5 mm

* Chain length - 270 mm

* Chain mesh size - 23.5x11x2.7 mm

* Shank diameter - 12 mm

* Pin shank bending angle - 45°

* Cotter wire diameter - 4 mm

* Pin length - 97 mm

* Pin eye diameter - 20.2 mm

* Material - high-quality carburized and induction hardened steel * Appropriate hardness on the pin surface prevents damage, dents and abrasion

* Flexible core prevents cracks * Corrosion resistance - all pins are subjected to an appropriate galvanizing process, which ensures high resistance to weather conditions

Application:

* Ursus C-360 agricultural tractors

Catalog number:

-️ 46551070M

-️ 46551070

Product features:

* Increased resistance to mechanical damage * Polish product

* Highest quality

* Producer MORGA

* 5 years warranty

Thanks to the use of the best available raw materials and the highest level of production processes, Morga pins guarantee the satisfaction of every customer.

MORGA the best choice for the Farmer!

Article number: AB. 46551070M
