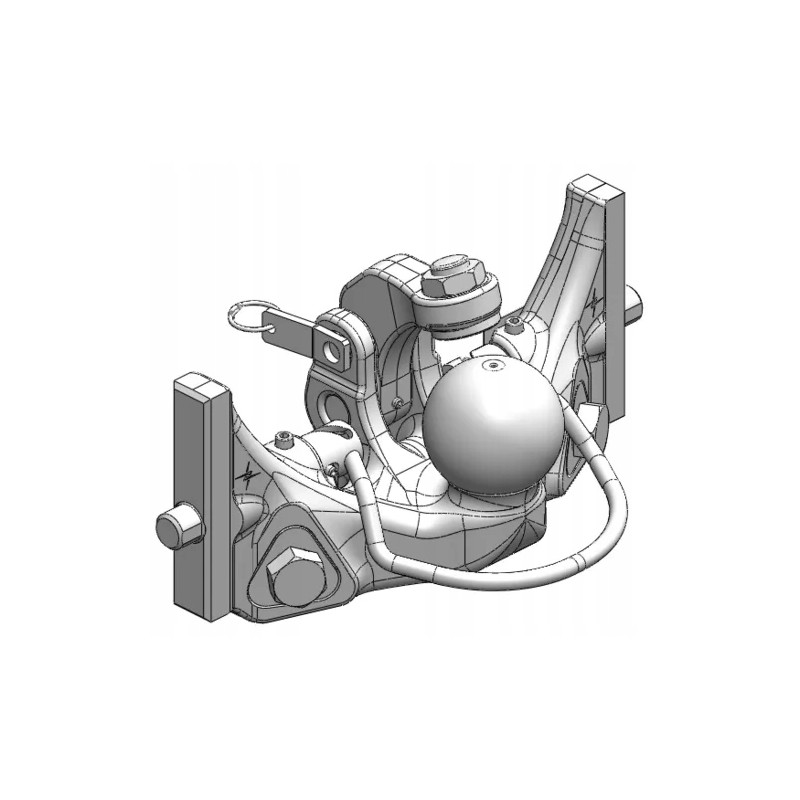

K80 transport hitch insert
  • K80 transport hitch insert
  • K80 transport hitch insert

K80 transport hitch insert

15013833197278
£2,212.32
Quantity
5 Items

Description
K80 transport hitch insert

Part number: K. 05633555A11

EAN:

Unit: Piece

Application:

Couplings with the following ABG type approval markings should be connected:

M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712, as well as with ball couplings according to ISO 24347.< p>

Features: Optional retrofitting of a rear wheel steering system (right, left, both sides)

Benefits:

Optimum driving comfort thanks to the minimum distance between the tractor and the trailer.< p>

High support load

Larger axial and vertical torsion angle than Piton-Fix and finger couplings

Less wear and long life

Guide width: 335mm

Track/guide thickness: 30mm

Adapter plate height: 150mm

Locking pin outer diameter: 22mm

Max. pulling load: 82.4kN

Max. vertical load: 3000kg

Color: Gray

Type: K80 manual

Length working width: 75mm

Additional information: Highly adjustable with handle

Related articles that you can find in our other offers:

Accessories

Components K50 control system, right direction 00520700

K50 control system components, left direction 00520710

Protective cap for K80 hitch 107308000

K80 hitch ring 20412000

Product Details
Scharmüller
15013833197278
K. 05633555A11
5 Items
New

Data sheet

Manufacturer
Scharmüller
Part Number
K. 05633555A11
