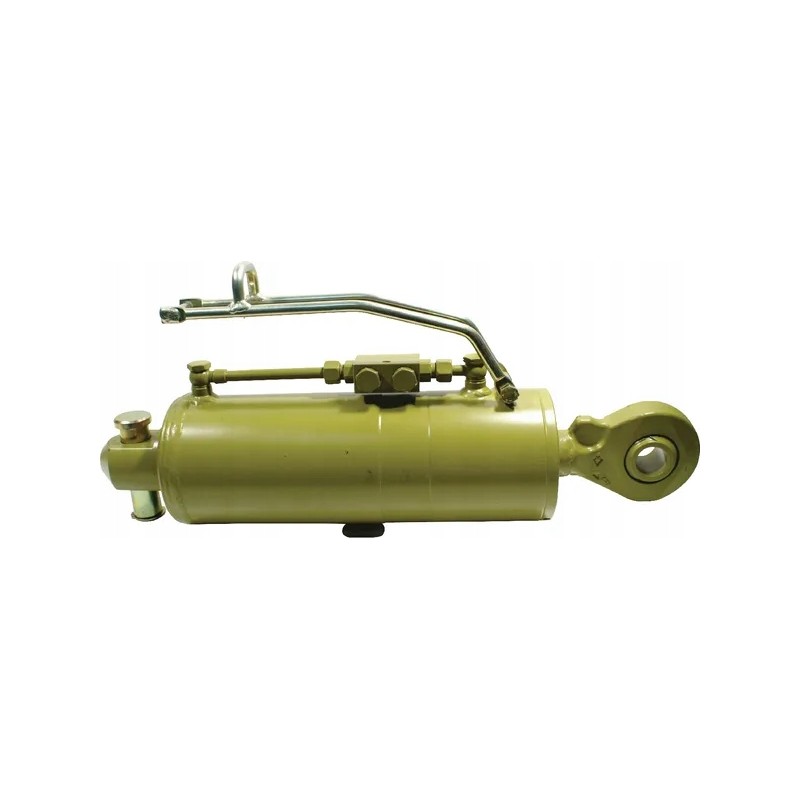

Upper hydraulic connector, category 3, oe 120

Category 3 hydraulic top connector Ø 120

Part number: K. 1205129

EAN:

Unit: Piece

Specifications: W In the case of the given length, it is the length without the fork head, measured in the middle of the distance

Application: For tractors with a power of up to 220 kW

Benefits:

Maximum pulling power and pressure for the highest power requirements

Versatile in use by installing various fork heads

Valve block protection with a specially reinforced bow

Mounting type - piston rod side: Ball< p>

Mounting type - cylinder side: No mounting element

Mounting category - piston rod side: 3

Mounting category - cylinder side: 3

Consisting of:

Equipped with a bracket and handle on the tractor side

Note: the fork head must be ordered separately!

Without hose set

Min length: 559mm

L min-maxMax length: 782mm

L3 Stroke: 223mm

Cylinder bore diameter: 120mm

Outer diameter: 135mm

Mounting hole diameter - piston rod side: 32.2mm

Max. tractor power: 220kW
