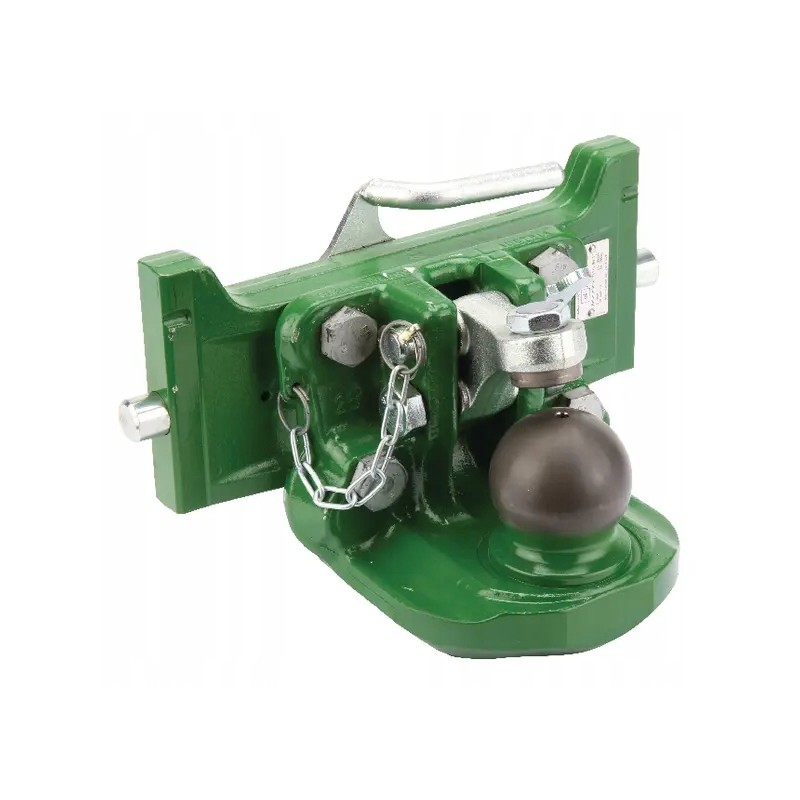

Ball transport hitch 80 mm green

Transport hitch, ball 80 mm green

Part number: K. 07633042A17

EAN:

Unit: Piece

Application:

Couplings with the following ABG type approval markings should be connected:

M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712, as well as with ball couplings according to ISO 24347.

Features: Optional retrofitting with a rear wheel steering system (right, left, both sides)

Benefits:

Optimum driving comfort thanks to the minimum distance between the tractor and trailer.

High support load

Larger axial and vertical turning angle than Piton-Fix and finger couplings

Less wear and long service life

Guide width: 330mm

Track/guide thickness: 32mm

Adapter plate height: 150mm

Locking pin outer diameter: 25mm

Max. pulling load: 89.3kN

Max. vertical load: 3000kg

Color: Black

Type: K80 manual

Spacing of mounting holes min.: 80mm

Spacing of mounting holes max.: 140mm

Working length: 155mm

Fits the brand of machines/vehicles: John Deere

Manufacturer: Cramer

The product fits machines:

DEUTZ-FAHR Series 5 (Tier 3B) 5100 Sn.- ZKDY6802W0TD10001, 5110 Sn.- ZKDY7202W0TD10001, 5120 Sn.- ZKDBA202W0TD20001, 5130 Sn.- ZKDAb02W0TD10001

Series 5DF TTV 5110TTV Sn.- ZKDY9202W0TD10001, 5120TTV Sn.- ZKDY9602W0TD10001, 51 30TTV Sn.- ZKDAH702W0TD10001

Series 6 Agrotron (TIER 3A - TIER 4F) 6140

Series 6 Agrotron (TIER 4I) 6120.4 Agrotron Sn.- WSXV230200LD50010, 6120.4P Agrotron Sn.- WSXV430200LD50010, 6130.4 Agrotron Sn.- WSXV270200LD5 0001, 6130.4P Agrotron Sn.- WSXV470200LD50010, 6140 Agrotron Sn.- WSXY970200LD50001, 6140P Agrotron Sn.- WSXW020200LD50001, 6150, 6150.4, 6150.4P Agrotron Sn.- WSXV550200LD50001, 6150P Agrotron Sn.- WSXU1502 00LD50001, 6160, 6160.4, 6160.4P Agrotron Sn.- WSXV590200LD50001, 6160P Agrotron Sn.- WSXU230200LD50001, 6180, 6180P Agrotron Sn.- WSXU310200LD50001, 6190, 6190P Agrotron Sn.- WSXU390200LD50001, 6210

Series 6 Agrotron TTV (Tier 4F) 6140TTV

Series 6 Agrotron TTV (Tier 4I) 6120.4TTV Agrotron Sn.- WSXV630200LD50001, 6130.4TTV Agrotron Sn.- WSXV670200LD50001, 6140.4TTV, 6150.4TTV Agrotron Sn.- WSXV750200LD50001, 6160.4TTV Agrotron Sn.- WSXV790200LD50001, 6160TTV Agrotron Sn.- WSXU430200LD50001, 6180TTV Agrotron Sn.- WSXU470200LD50001 , 6190TTV Agrotron Sn.- WSXW090200LD50001

Series Agrotron New Agrotron 215 New Sn.- 8170 1001

Fiat Series 66 466, 466 DT, 55/66, 55/66 DT, 566 , 566 DT, 60/66, 60/66 DT, 65/66, 65/66 DT, 666, 666 DT, 70/66, 70/66 DT, 766, 766 DT, 80/66, 80/66 DT < p>

Series 80 1180, 1180, 1180, 1180, 1180, 1180 DT, 1180 DT, 1180 DT, 1180 DT, 1180 DT, 1280, 1280, 1280, 1280 DT, 1280 DT, 1280 DT, 1380, 1380, 1380, 1380 DT, 1380 DT, 1380 DT, 1580, 1580, 1580, 1580 DT, 1580 DT, 1580 DT, 1880, 1880, 1880, 1880 DT, 1880 DT, 1880 DT, 5 80, 580 DT, 680, 680 DT, 780, 780 DT, 880, 880 DT, 980, 980 DT

Series 90 100/90, 100/90, 100/90, 100/90, 100/90, 100/90 DT , 100/90 DT, 100/90 DT, 100/90 DT, 100/90 DT, 110/90, 110/90, 110/90, 110/90, 110/90, 110/90 DT, 110/90 DT , 110/90 DT, 110/90 DT, 110/90 DT, 115/90, 115/90, 115/90, 115/90, 115/90, 115/90 DT, 115/90 DT, 115/90 DT , 115/90 DT, 115/90 DT, 130/90, 130/90, 130/90, 130/90 DT, 130/90 DT, 130/90 DT, 140/90, 140/90, 140/90, 140/90 DT, 140/90 DT, 140/90 DT, 160/90, 160/90, 160/90, 160/90 DT, 160/90 DT, 160/90 DT, 180/90, 180/90, 180/90, 180/90 DT, 180/90 DT, 180/90 DT, 55/90, 55/90 DT, 60/90, 60/90 DT, 65/90, 65/90 DT, 70/90, 70/90 DT, 80/90, 80/90 DT, 85/90, 85/90 DT, 90/90, 90/90 DT

John Deere Series 3000 - 30 3030, 3030, 3030 < P>

Series 3000 - 40,3040, 3040, 3040, 3140, 3140, 3140, 3640, 3640

Series 50 1350, 1350, 1350, 1550, 1550, 1550, 1750, 1750, 1750, 1850, 1850, 1850, 1950, 1950, 1950, 2250, 2250, 2250, 2450, 2450, 2450, 2650, 2650, 2650, 2850, 2850, 2850, 3050, 3 050, 3050, 3350, 3350, 3350, 3650

Series 5000 - 10 5310, 5410

Series 5000 - 15 5315, 5415

Series 5000 - 20 5620, 5720, 5820

Series 5000 - E 5055E, 5065E, 5075E, 5085E, 5095E

Series 5000 - M 5070M, 5075M, 5080M, 5085M, 5090M, 5100M, 5115M

Series 5000 - R 5080R, 5080RN, 5090R, 5100R

Series 5000 5300, 5400, 5500

Series 6000 - 10 6010, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910 < p>

Series 6000 - 20 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S

Series 6000 - 30 6130, 6230, 6330, 643 0, 6530, 6534, 6630, 6830, 6930

Series 6000 - M 6105M, 6115M, 6125M, 6130M, 6140M, 6150M, 6170M

Series 6000 - MC 6090MC, 6100MC, 6110MC < p>

Series 6000 - R 6105R, 6115R, 6125R, 6130R, 6140R, 6150R, 6170R, 6190R, 6210R

Series 6000 6100, 6200, 6300, 6400
