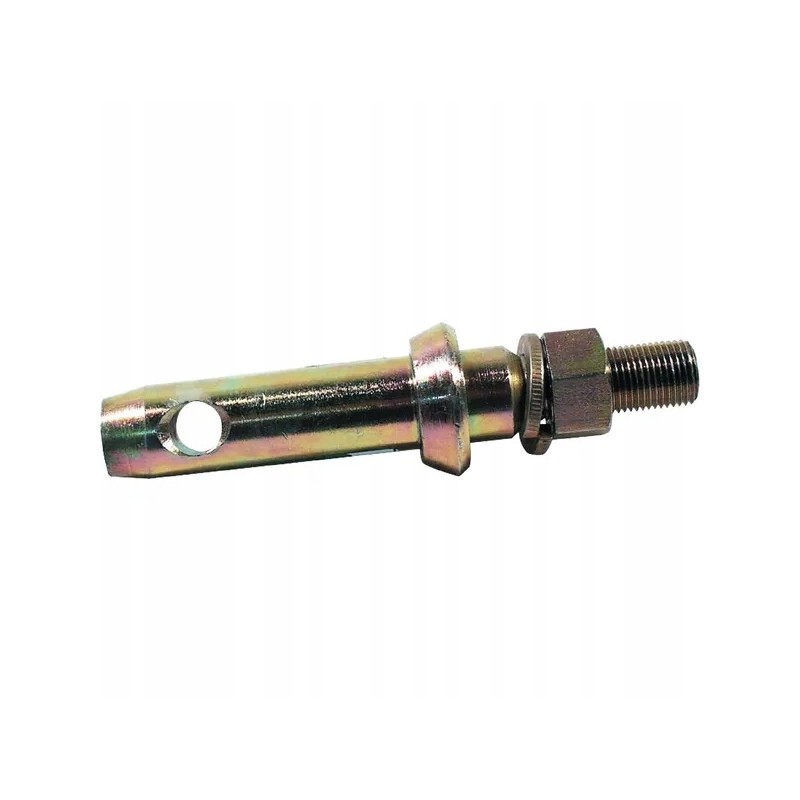

Drawbar pin, screw-on pin, 22x137 mm

Lower link pin 22x137 mm thread: 5/8'x35 mm cat.1

Application:

Lower pin for the hitch triangle (bottom)

Properties:

Galvanized

Technical data:

A - Pin outer diameter: 22 mm

C - Total pin length: 137 mm< p>

F - Length: 54 mm

G - Head diameter: 22 mm

B - Distance from the hole to the head: 51 mm

H - Hole diameter: 12 mm

D - Thread diameter: 5/8 inch UNF

E - Thread length: 35 mm
