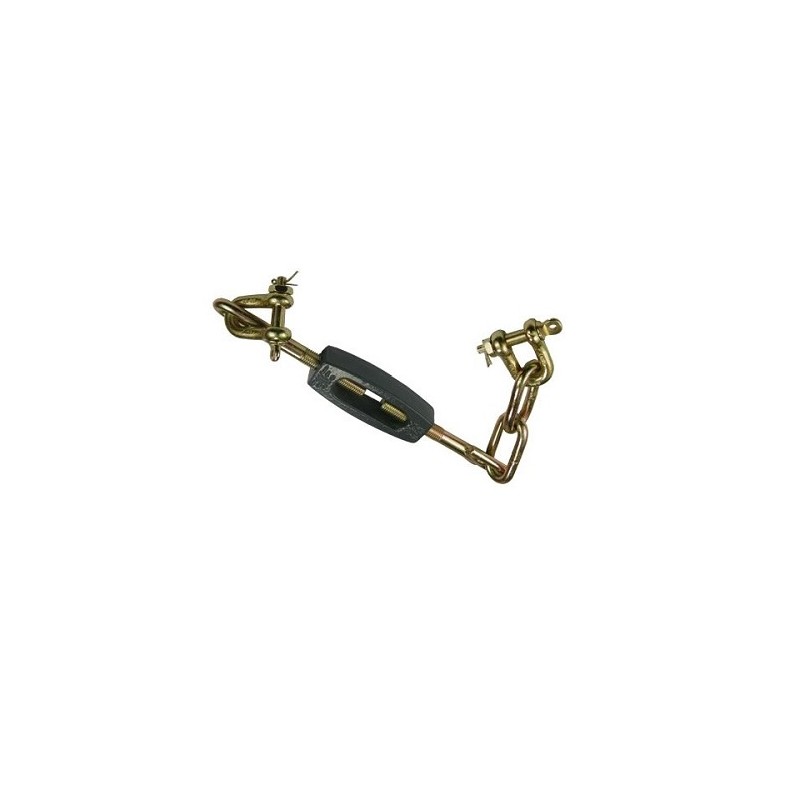

Side chain c330 ursus 42370330u

C330 URSUS side chain

Catalog number 42/37-033/0U

- The screws of the original Ursus side chains (C-330 M14, C-360 M16) are made of hardened steel, after welding, the links are heat treated Rm-800 -1000N /mm,

- eye bolts are made of hardened steel, plastically processed (hot forged), which ensures better mechanical properties of the finished product. Hot forging of the screw preserves the continuity of the fibers, which ensures better quality of the screw, which is finally heat-treated to class 8.8, - the ears are made in accordance with the technical requirements of DIN 82101, - the yokes are made of ductile cast iron, which makes them resistant to compression, bending and have good resistance to mechanical loads, - chains are made according to the PN-75/M-84543 standard, subjected to breaking tests: Ursus C-330 links with a thickness of 10mm - 40kN (4000kg), Ursus C- 360 cells with a thickness of 13mm - 63kN (6300kg.

This is how you will recognize the original: - permanent Ursus sign, placed on every original Ursus product,

- white and red packaging, all our parts are packed in the well-known "bear" packaging,

- product label, a label is placed on the product packaging indicating the entity responsible for production and/or quality control as well as the catalog number and name,

- Ursus hologram, each product is secured with a unique hologram, which is placed separately or embedded in the label,

- IRON WARRANTY, there is a sticker on the product packaging confirming the 24-month warranty.
