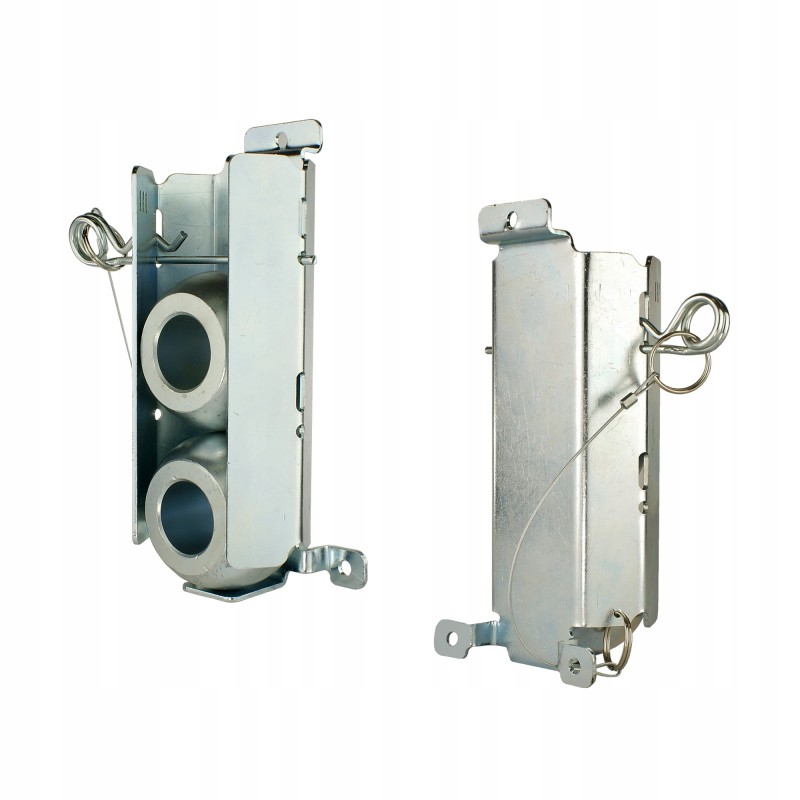

Magazine 2x lower lever agricultural ball 64x28

MAGAZINE FOR BALLS WITH TWO BALLS 64x28.4x45 3/2 CATEGORIES FOR THREE-POINT SUSPENSION SYSTEM Production:

Original product of the Hydrolider brand, symbol: 2.00.18.332.1

Application:

The set is widely used in agriculture, horticulture, construction and industry.

The bracket allows for storage balls in a safe and designated place on the tractor, machine or wall in the garage or machinery park.

The ball without a guide collar allows for quick connection and disconnection of machines from the tractor. Used in the hook mounting system for the CBM category 3/2 lower link.

Installation:

Sample photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

Technical data:

Set includes: magazine, two balls, cable and safety pin

MAGAZINE :Bracket material: 2mm thick galvanized sheet

Total height: 192mm

Total width: 91 mm

Total thickness: 63 mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 64 mm

BALLS:

Material: SAE 1020 (hardened steel )

Inner diameter: 28.4mm

Outer diameter: 64mm

Length: 45mm
