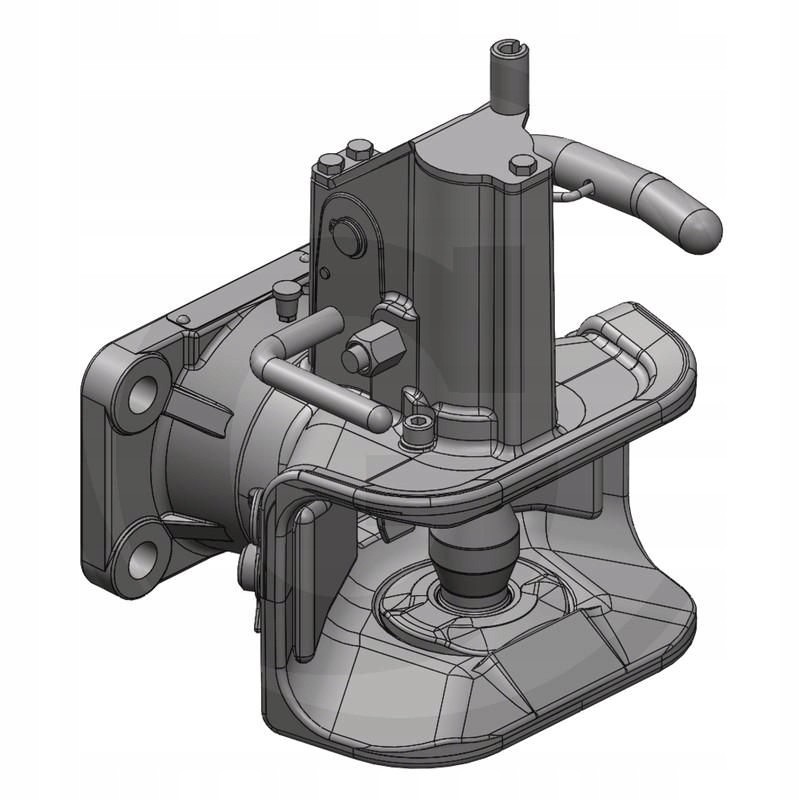

Automatic hitch with collar and preparation

Automatic hitch with CH-I collar with preparation for remote control for other manufacturers 9068731 Scharmüller

Scharmüller Automatic hitch with collar

Available, among others: Suitable for various manufacturers Pin connector Automatic hitches with flange - search filter, fits CASE Trailer hitches - version with automatic head, fits Claas Trailer hitches - version with automatic head, fits Deutz Trailer hitches - version with automatic head, fits Fendt Trailer hitches - version with automatic head, fits for Fiat Trailer hitches - version with automatic head, fits Hürlimann Trailer hitches - version with automatic head

- Types: 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 60-94, 65-94, 66-94, 72- 94, 82-94, 88-94, 45-66, 55-66, 60-66, 66-66, 65-66, 70-66, 80-66, 55-88, 60-88, 65-88, 70-88, F 100, 110,

Technical data:

Hitch pin (mm): 38, Hole circle (mm): 140 x 80, Ø, hole (mm) : 17, Load (kg): 2000., D-value (kN): 82.4, Perm. total weight (kg): 12000, Locking: Automatic, Thread: M16, Hitch eye: DIN 11026, 74054

(ISO 8755) = 40 mm

DIN 74053 (ISO 1102) = 50 mm, Weight: 18.00 kg, Photo no.: 8

Comparison numbers: 9068731

Manufacturer: Scharmüller
