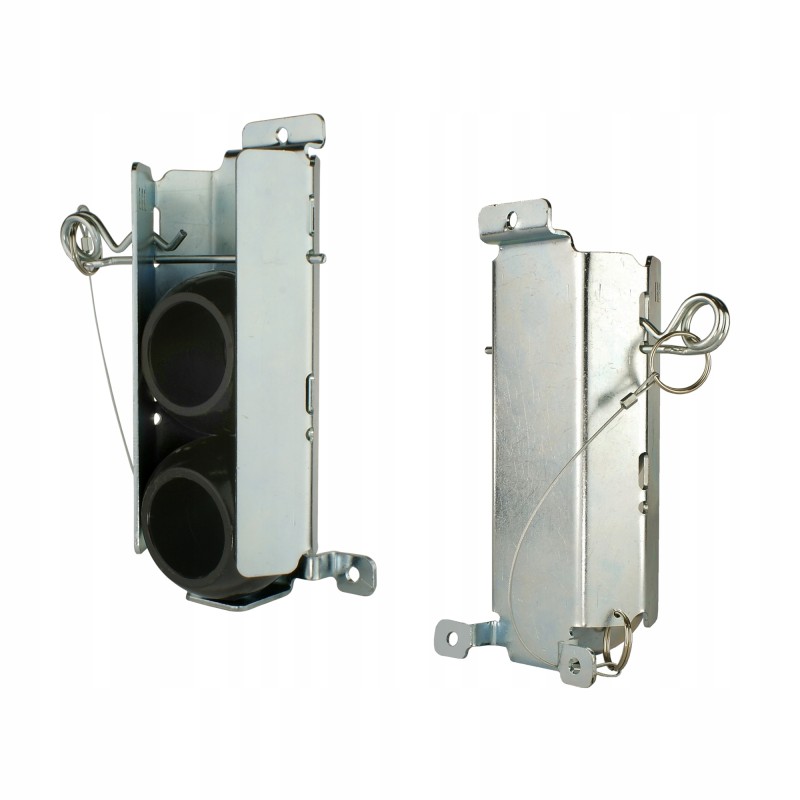

Magazine with BK Cat1 1w 44 22 hydrolider bullets

MAGAZINE FOR BALLS WITH TWO BALLS 44x22.4x35 1/1 CATEGORY WITH ELECTROCHEMICAL PROTECTIVE COATING FOR THREE-POINT SUSPENSION SYSTEM Production:

Original product of the Hydrolider brand, symbol: 2.00.18.311.2

Application:

The set has a wide range of applications in agriculture and horticulture , construction and industry.

The bracket allows you to store the balls in a safe and designated place on the tractor, machine or wall in the garage or machinery park.

The ball without a guide collar allows you to quickly connect and disconnect machines from the tractor. Used in the CBM lower link hook mounting system of category 1/1.

The electrochemical coating provides 6 times greater protection than the standard galvanic coating. Particularly recommended when working in difficult atmospheric and chemical conditions related to fertilization, cultivation and protection of plants, e.g. in seeders, sprayers, tankers and others.

Installation:

Example photo of the magazine mounted at the rear of the tractor on the inner part of the fender:

Technical data:

The set includes:

Magazine

Two balls

Cable

Securing pin

MAGAZINE: Bracket material: 2mm thick galvanized sheet metal

Total height of the bracket: 153mm

Total width of the bracket: 72mm

Total thickness of the bracket: 53mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 44mm

Ball category marking on the bracket: YES

BALLS:

Material: Material 16 Mn Cr 5 (manganese-chrome steel, hardened)

Additionally: protective electrochemical coating

Inner diameter: 22.4mm

Diameter outer: 44mm

Length: 35mm
