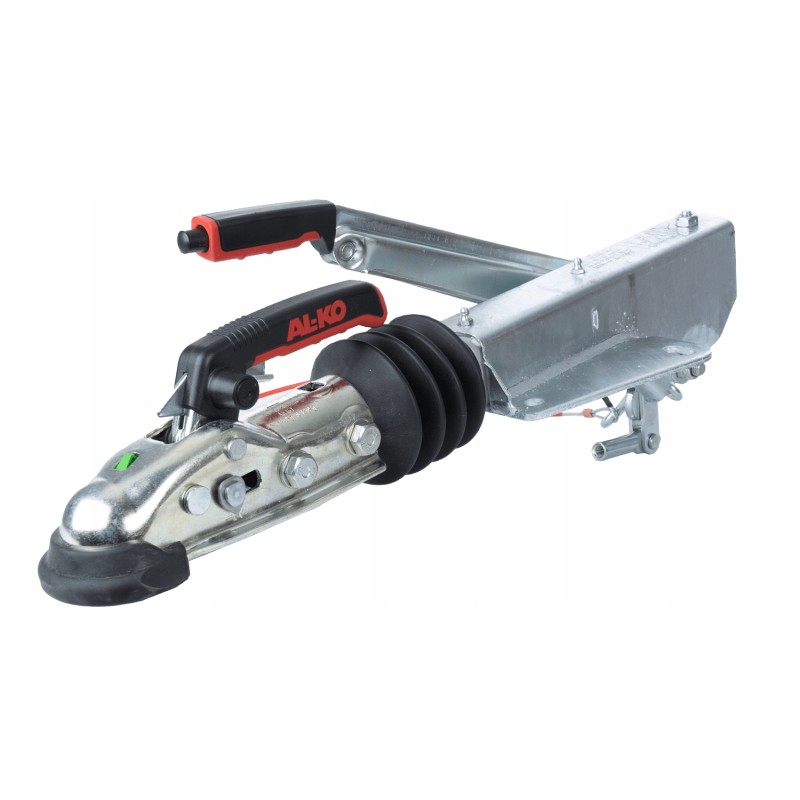

Overrun device - overrun brake for al ko 750kg trailer

AL-KO 60S/2,750kg trailer overrun device. Original product of the brand: AL-KO. AL-KO 60S/2,750 kg overrun device, GVW 400 - 750 kg, original AL-KO, for car trailers and tow trucks with GVW of 450-750 kg. Overrun brake for a trailer or tow truck with a GVW of up to 750 kg.

60S/2 overrun device from the renowned AL-KO company. The device is intended for trailers with a V-type drawbar. The brake has a new type AK 161 hitch. The permissible total weight of the trailer for the brake is 450 - 750 kg. The device is compatible with AL-KO axles.

Action:

The overrun device is used to control the inertia braking system. As a result of braking the towing vehicle, a force is created at the hitch point, which, after overcoming the threshold resistance, presses the bolt carrier and activates the return lever. The lever via the brake rod activates the brake.

Overrun device 750 kg

AK 161 S

hitch Original AL - KO

For 'V' type drawbar
