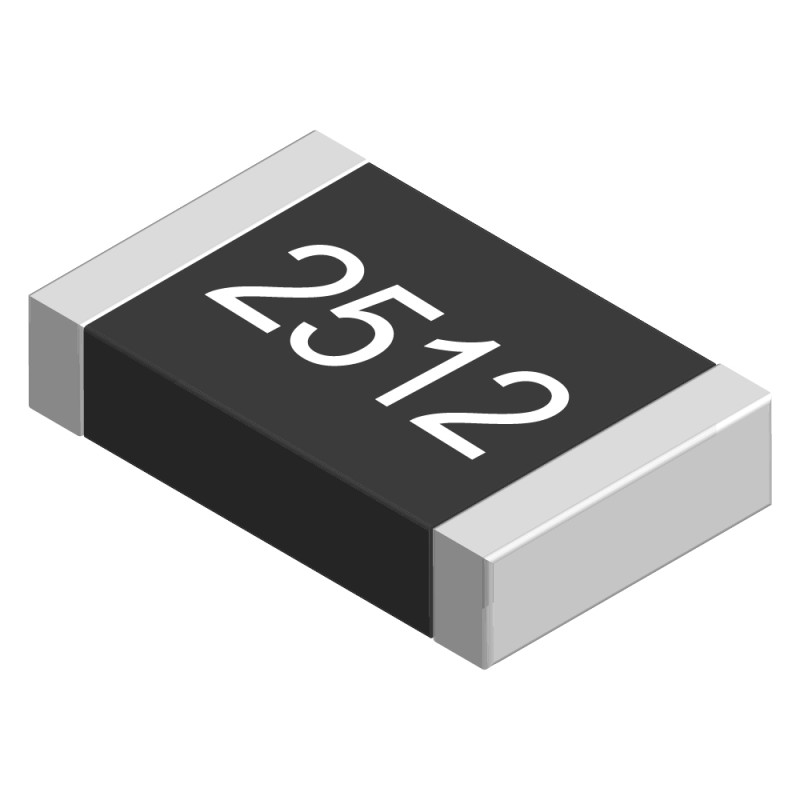

50 pcs - TLR3A30DR0015FTDG TE Connectivity 1.5mΩ, 2512 (6432M) Metal Strip SMD Resistor ±1% 3W - TLR3A30DR0015FTDG
    • 50 pcs - TLR3A30DR0015FTDG TE Connectivity 1.5mΩ, 2512 (6432M) Metal Strip SMD Resistor ±1% 3W - TLR3A30DR0015FTDG

    50 pcs - TLR3A30DR0015FTDG TE Connectivity 1.5mΩ, 2512 (6432M) Metal Strip SMD Resistor ±1% 3W - TLR3A30DR0015FTDG

    50(electronicparts)7717856
    50 pcs - TLR3A30DR0015FTDG TE Connectivity 1.5mΩ, 2512 (6432M) Metal Strip SMD Resistor ±1% 3W - TLR3A30DR0015FTDG
    £43.75
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SMD Low Ohmic / Current Sense Resistors - TLR SeriesThe TLR series high power metal chip resistors for current sensing applications, are constructed to prolong terminal life by having its metal resistive element and barrier layers beneath the solder. TLR resistors are ideal for use in combination with a range of IC's for battery charge management and low voltage power supplies, where a low ohmic shunt resistor is required to act as a current sensor. TLR’s are particularly suited to applications in the automotive industry for sensing in EMU's.Bulk metal chip resistorsLow thermal e.m.f.Non-inductiveMarked with 3-digit resistance codeMini reels are ideal for small batch production, development and R&D departmentSuitable for automatic assembly on pick and place machinery
    Product Details
    50(electronicparts)7717856
    TLR3A30DR0015FTDG
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Tolerance
    ±1%
    Resistance
    1.5mΩ
    Temperature coefficient
    ±50ppm/°C
    A-Supplier
    Allparts-UK/15/R-13
    Series
    TLR
    Power Rating
    3W
    Technology
    Metal Strip
    Package/Case
    2512 (6432M)
