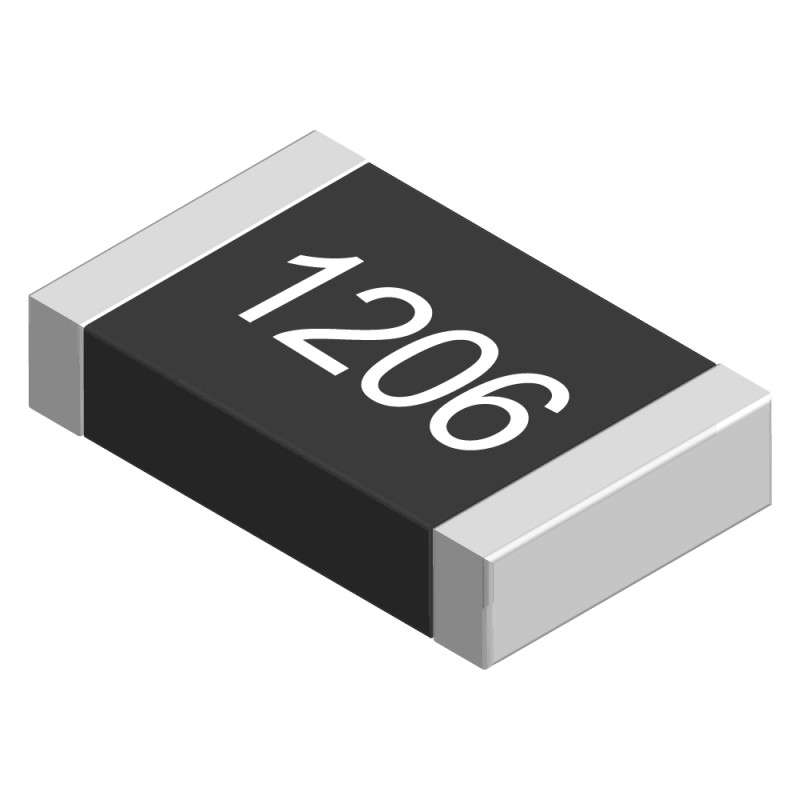

50 pcs - ERJP08F5601V Panasonic 5.6kΩ, 1206 (3216M) Thick Film SMD Resistor ±1% 0.66W - ERJP08F5601V
    • 50 pcs - ERJP08F5601V Panasonic 5.6kΩ, 1206 (3216M) Thick Film SMD Resistor ±1% 0.66W - ERJP08F5601V

    50 pcs - ERJP08F5601V Panasonic 5.6kΩ, 1206 (3216M) Thick Film SMD Resistor ±1% 0.66W - ERJP08F5601V

    50(electronicparts)7219885
    PANASONIC
    50 pcs - ERJP08F5601V Panasonic 5.6kΩ, 1206 (3216M) Thick Film SMD Resistor ±1% 0.66W - ERJP08F5601V
    £42.00
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    1206 Format Anti-Surge Resistors, ERJP08 Series - 1% (3.3kΩ to 1MΩ)Panasonic ERJ P08 anti-surge thick film chip resistors are constructed from three layers of electrodes with a metal glaze thick film resistive element and protective coating. This construction ensures high reliability while allowing for reflow and flow soldering.AEC-Q200 qualified0.66 W high-power ratingAnti-surgeSuperior surge characteristics compared to standard film resistorsApplicationsThese chip resistors are AEC-Q200 qualified and can be used for automotive applications.StandardsIEC 60115-8, JIS C 5201-8, EIAK RC-2134
    Product Details
    PANASONIC
    50(electronicparts)7219885
    ERJP08F5601V
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Tolerance
    ±1%
    Resistance
    5.6kΩ
    Temperature coefficient
    ±100ppm/°C
    A-Supplier
    Allparts-UK/15/R-13
    Series
    ERJP08
    Power Rating
    0.66W
    Technology
    Thick Film
    Package/Case
    1206 (3216M)
    Automotive Standard
    AEC-Q200
