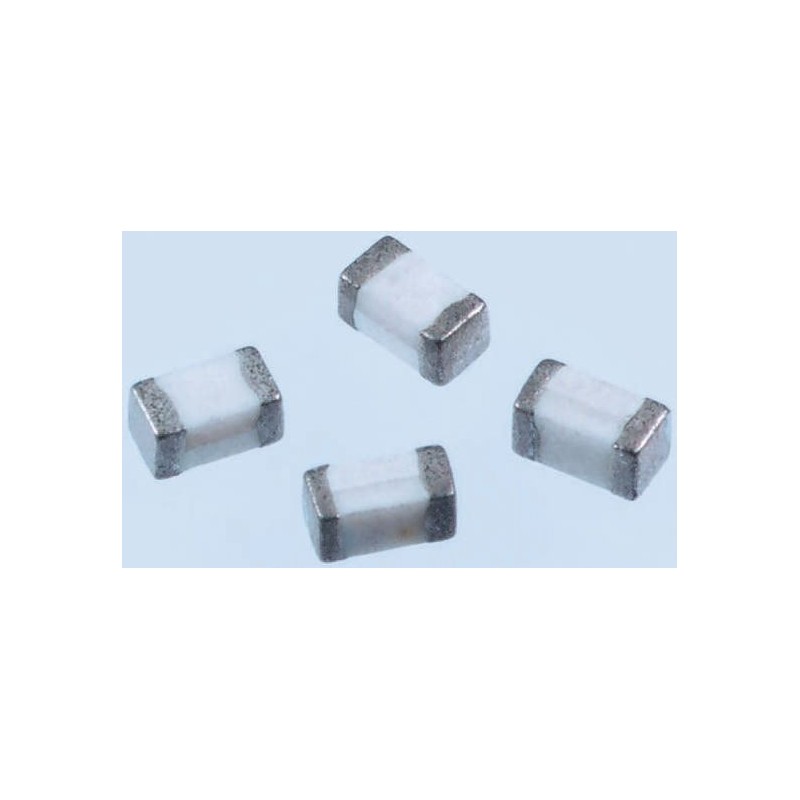

1000 pcs - LQG15HS1N5S02D Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor 1.5 nH ±0.3nH Wire-Wound 300mA Idc Q:8
    • 1000 pcs - LQG15HS1N5S02D Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor 1.5 nH ±0.3nH Wire-Wound 300mA Idc Q:8

    1000 pcs - LQG15HS1N5S02D Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor 1.5 nH ±0.3nH Wire-Wound 300mA Idc Q:8

    1000(Allparts)7926334P
    MURATA
    1000 pcs - LQG15HS1N5S02D Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor 1.5 nH ±0.3nH Wire-Wound 300mA Idc Q:8
    £54.20
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 0402 LQG15HS Series High Frequency Chip InductorsLQGH15HS inductors from Murata are general use multilayer surface mount inductors. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance.Can be used in high frequency circuitsLower DC resistance enables devices to use less powerStable at high frequencies
    Product Details
    MURATA
    1000(Allparts)7926334P
    LQG15HS1N5S02D
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±0.3nH
    Dimensions
    1 x 0.5 x 0.5mm
    Height
    0.5mm
    Length
    1mm
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQG15HS
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    300mA
    Inductance
    1.5 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    100mΩ
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    6GHz
    Minimum Quality Factor
    8
    Moulded
    Yes
