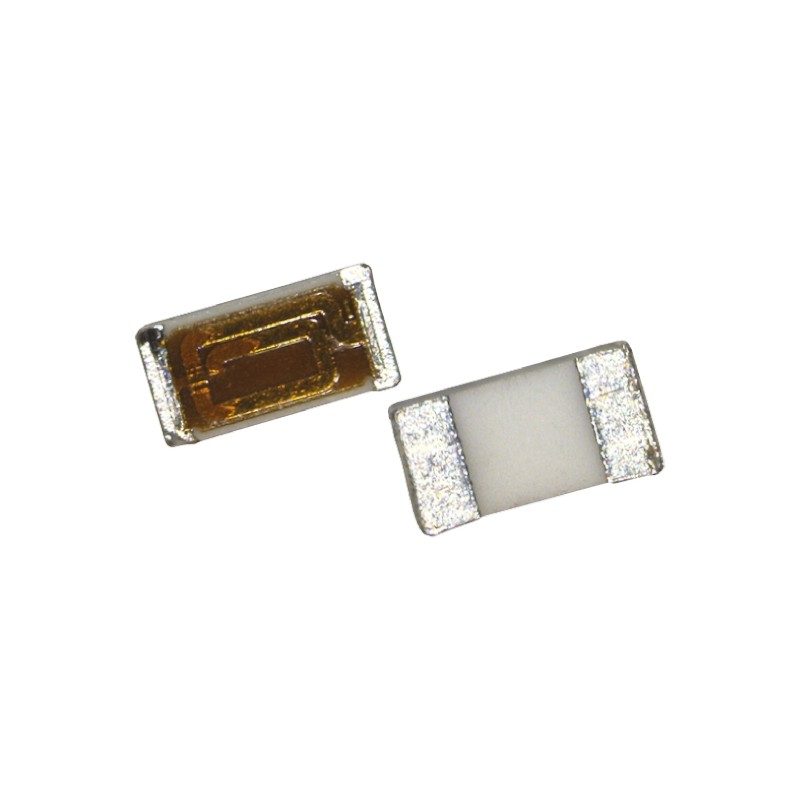

    250 pcs - LQP15MN7N5B02D Murata, LQP15M, 0402 (1005M) Multilayer Surface Mount Inductor with a Ferrite Core, 7.5 nH ±0.1nH Multi
    • 250 pcs - LQP15MN7N5B02D Murata, LQP15M, 0402 (1005M) Multilayer Surface Mount Inductor with a Ferrite Core, 7.5 nH ±0.1nH Multi

    250 pcs - LQP15MN7N5B02D Murata, LQP15M, 0402 (1005M) Multilayer Surface Mount Inductor with a Ferrite Core, 7.5 nH ±0.1nH Multi

    250(electronicparts)7859177P
    MURATA
    250 pcs - LQP15MN7N5B02D Murata, LQP15M, 0402 (1005M) Multilayer Surface Mount Inductor with a Ferrite Core, 7.5 nH ±0.1nH Multilayer 110mA Idc
    £51.60
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 0402 LQP15M Series Thin Film InductorsLQP15M Ultra small low profile chip inductor with film technology construction. Available in various inductance values enabling assembly with no tuning required.High Q at high frequency rangeHigh self-resonant frequency due to low stray capacitance and narrow inductance distribution provides stable inductance in high frequency circuits such as telecommunications equipmentApplications:-High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc.Mobile phones'Bluetooth'W-LANHigh frequency circuits in general
    Product Details
    MURATA
    250(electronicparts)7859177P
    LQP15MN7N5B02D
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±0.1nH
    Dimensions
    1 x 0.5 x 0.35mm
    Height
    0.35mm
    Length
    1mm
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQP15M
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    110mA
    Inductance
    7.5 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    1.1Ω
    Core Material
    Ferrite
    Inductor Construction
    Multilayer
    Maximum Self Resonant Frequency
    5.5GHz
    Minimum Quality Factor
    13
