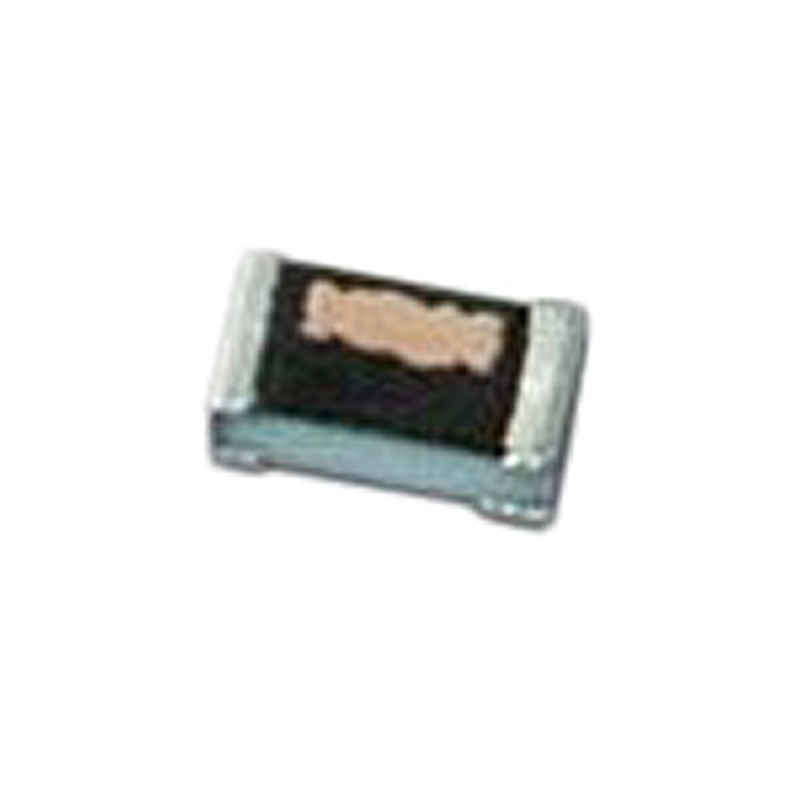

250 pcs - 744900010 Wurth, WE-TCI, 0201 (0603M) Wire-wound SMD Inductor 1 nH Thin Film 300mA Idc Q:8
    • 250 pcs - 744900010 Wurth, WE-TCI, 0201 (0603M) Wire-wound SMD Inductor 1 nH Thin Film 300mA Idc Q:8

    250 pcs - 744900010 Wurth, WE-TCI, 0201 (0603M) Wire-wound SMD Inductor 1 nH Thin Film 300mA Idc Q:8

    250(electronicparts)8988131
    250 pcs - 744900010 Wurth, WE-TCI, 0201 (0603M) Wire-wound SMD Inductor 1 nH Thin Film 300mA Idc Q:8
    £59.25
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0201 WE-TCI SeriesWurth WE-TCI Series 0201 multilayer ceramic inductors are suitable for use in high frequency circuits. The windings are printed on ceramic substrate. These inductors offer stable inductance over temperature, inductive tolerances of 5%, ± 0.2 nH and an extremely high self resonant frequency. Reflow or wave soldering is recommended for this series.Ideal applications for these SMD inductors include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits.
    Product Details
    250(electronicparts)8988131
    744900010
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    0.6 x 0.3 x 0.23mm
    Height
    0.23mm
    Length
    0.6mm
    Depth
    0.3mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-TCI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    300mA
    Inductance
    1 nH
    Package/Case
    0201 (0603M)
    Maximum DC Resistance
    300mΩ
    Inductor Construction
    Thin Film
    Maximum Self Resonant Frequency
    9GHz
    Minimum Quality Factor
    8
    Moulded
    Yes
