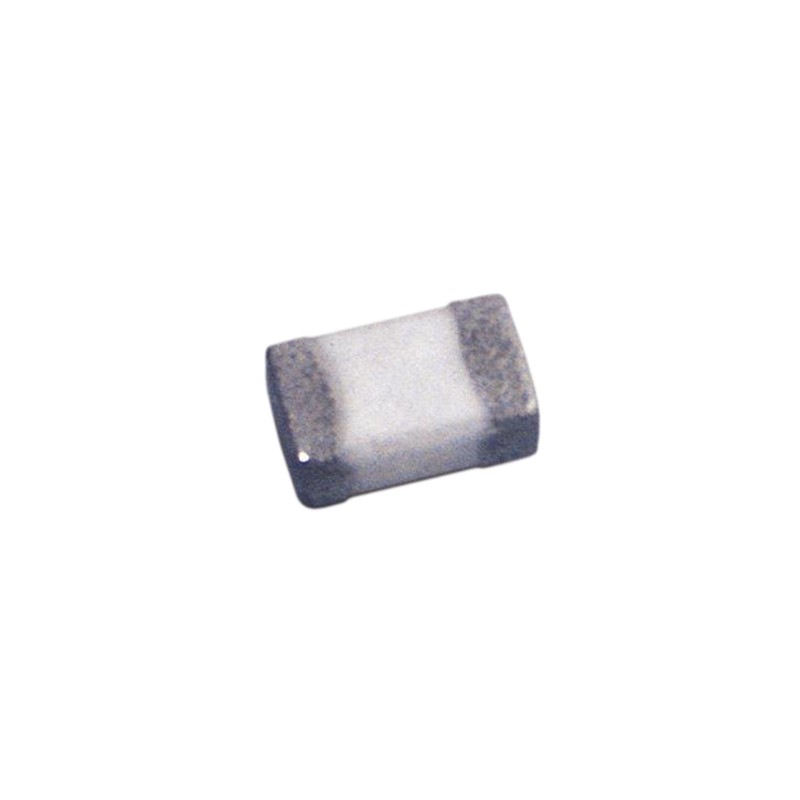

    250 pcs - 744784068 Wurth, WE-MK, 0402 (1005M) Multilayer Surface Mount Inductor with a Ceramic Core, 6.8 nH Multilayer 250mA Id
    • 250 pcs - 744784068 Wurth, WE-MK, 0402 (1005M) Multilayer Surface Mount Inductor with a Ceramic Core, 6.8 nH Multilayer 250mA Id

    250 pcs - 744784068 Wurth, WE-MK, 0402 (1005M) Multilayer Surface Mount Inductor with a Ceramic Core, 6.8 nH Multilayer 250mA Id

    250(electronicparts)8830234
    250 pcs - 744784068 Wurth, WE-MK, 0402 (1005M) Multilayer Surface Mount Inductor with a Ceramic Core, 6.8 nH Multilayer 250mA Idc Q:8
    £39.10
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0402 WE-MK Series Multilayer Ceramic InductorsWurth WE-MK Series 0402 multilayer ceramic inductors are suitable for use in high frequency circuits. The windings are printed on ceramic substrate. These inductors offer stable inductance over temperature, inductive tolerances of 5%, ± 0.3 nH and an extremely high self resonant frequency. Reflow or wave soldering is recommended for this series.Ideal applications for these SMD inductors include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits.
    Product Details
    Wurth Elektronik
    250(electronicparts)8830234
    744784068
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    1 x 0.5 x 0.5mm
    Height
    0.5mm
    Length
    1mm
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-MK
    Maximum Operating Temperature
    +120°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    250mA
    Inductance
    6.8 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    320mΩ
    Core Material
    Ceramic
    Inductor Construction
    Multilayer
    Maximum Self Resonant Frequency
    5GHz
    Minimum Quality Factor
    8
    Moulded
    Yes
