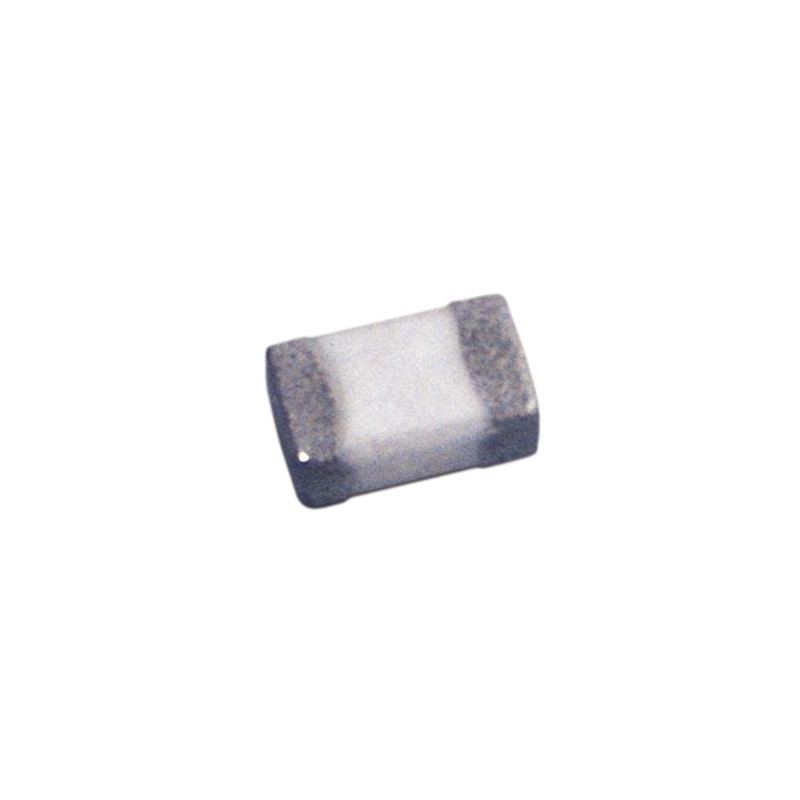

    250 pcs - 744786243A Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 430 nH Multilayer 150mA I
    • 250 pcs - 744786243A Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 430 nH Multilayer 150mA I

    250 pcs - 744786243A Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 430 nH Multilayer 150mA I

    250(electronicparts)8830556
    250 pcs - 744786243A Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 430 nH Multilayer 150mA Idc Q:8
    £29.20
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0603 WE-MK Series Multilayer Ceramic InductorsWurth WE-MK Series 0603 multilayer ceramic inductors are suitable for use in high frequency circuits such as tuners, transponders and HF amplifiers. Other applications include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits. These inductors offer stable inductance over temperature, inductive tolerances of 5%, ±0.3 nH and an high self-resonant frequency. The windings are printed on ceramic substrate and reflow or wave soldering is recommended for this series of multilayer inductors.
    Product Details
    Wurth Elektronik
    250(electronicparts)8830556
    744786243A
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    1.6 x 0.8 x 0.8mm
    Height
    0.8mm
    Length
    1.6mm
    Depth
    0.8mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-MK
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    150mA
    Inductance
    430 nH
    Package/Case
    0603 (1608M)
    Maximum DC Resistance
    3.4Ω
    Core Material
    Ceramic
    Inductor Construction
    Multilayer
    Maximum Self Resonant Frequency
    280MHz
    Minimum Quality Factor
    8
    Moulded
    Yes
