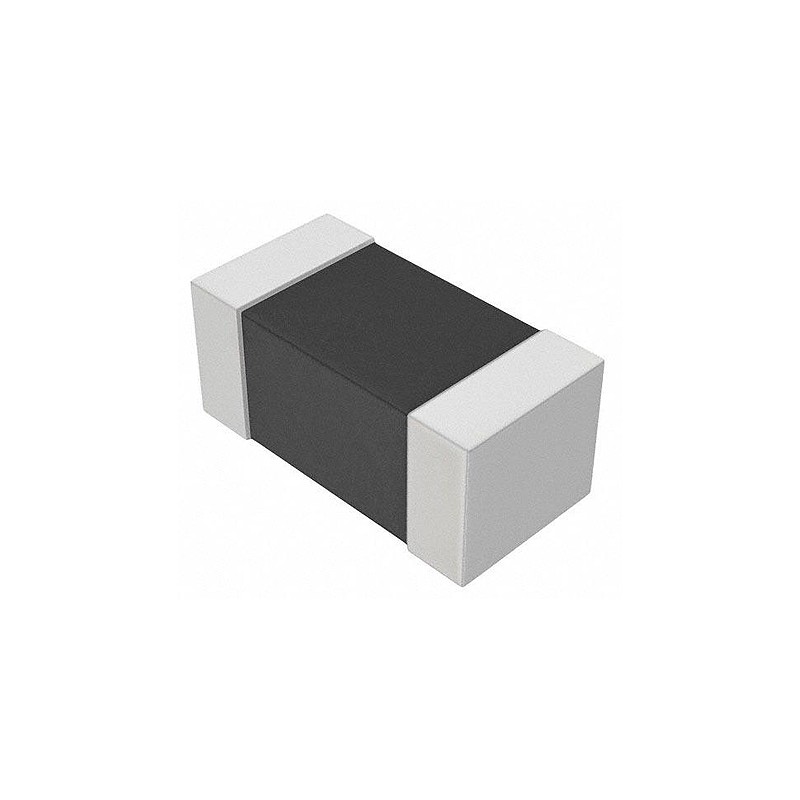

    100 pcs - LQM21PN2R2MGSD Murata, LQM21PN_GS, 0805 (2012M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH
    • 100 pcs - LQM21PN2R2MGSD Murata, LQM21PN_GS, 0805 (2012M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH

    100 pcs - LQM21PN2R2MGSD Murata, LQM21PN_GS, 0805 (2012M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH

    100(electronicparts)1065341
    MURATA
    100 pcs - LQM21PN2R2MGSD Murata, LQM21PN_GS, 0805 (2012M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH ±20% Multilayer
    £44.06
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LQM21PN Series SMD Chip InductorsMurata LQM Series Surface mount film chip inductors feature a multilayer type ferrite core which enables a current rating of up to 1800 mA. These multilayer inductors offer a wide range of current ratings, inductance values and sizes. The LQM inductors feature a magnetically shielded structure and has a low DC resistance. LQM Inductors are ideal for use in voltage conversion, resonance circuit and low frequency applications.ApplicationsDigital CamerasTVMobile phonesGame machinesHDDMurata Non Standard SMT Inductors (Chokes)
    Product Details
    MURATA
    100(electronicparts)1065341
    LQM21PN2R2MGSD
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±20%
    Dimensions
    2 x 1.25 x 0.9mm
    Height
    0.9mm
    Length
    2mm
    Depth
    1.25mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQM21PN_GS
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    950mA
    Inductance
    2.2 μH
    Package/Case
    0805 (2012M)
    Maximum DC Resistance
    180mΩ
    Core Material
    Ferrite
    Inductor Construction
    Multilayer
    Moulded
    Yes
