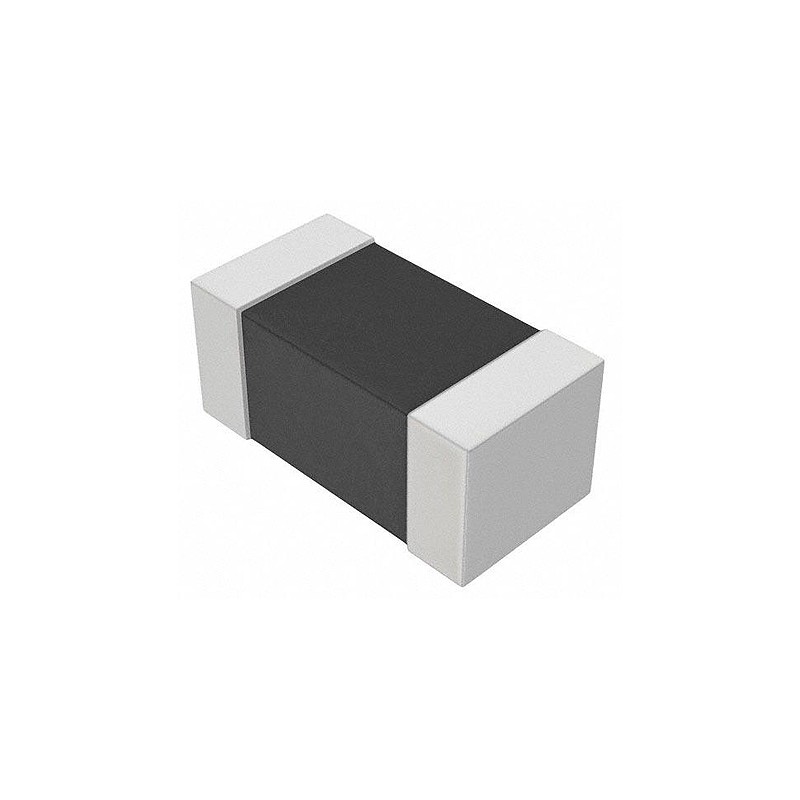

    100 pcs - LQM18PN2R2MFRL Murata, LQM18PN_FR, 0603 (1608M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH
    • 100 pcs - LQM18PN2R2MFRL Murata, LQM18PN_FR, 0603 (1608M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH

    100 pcs - LQM18PN2R2MFRL Murata, LQM18PN_FR, 0603 (1608M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH

    100(electronicparts)1065340
    MURATA
    100 pcs - LQM18PN2R2MFRL Murata, LQM18PN_FR, 0603 (1608M) Shielded Multilayer Surface Mount Inductor with a Ferrite Core, 2.2 μH ±20% Multilayer
    £39.72
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LQM18PN Series SMD Chip InductorsMurata LQM Series Surface mount film chip inductors feature a multilayer type ferrite core which enables a current rating of up to 1800 mA. These multilayer inductors offer a wide range of current ratings, inductance values and sizes. The LQM inductors feature a magnetically shielded structure and has a low DC resistance. LQM Inductors are ideal for use in voltage conversion, resonance circuit and low frequency applications.ApplicationsDigital CamerasTVMobile phonesGame machinesHDDMurata Non Standard SMT Inductors (Chokes)
    Product Details
    MURATA
    100(electronicparts)1065340
    LQM18PN2R2MFRL
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±20%
    Dimensions
    1.6 x 0.8 x 0.8mm
    Height
    0.8mm
    Length
    1.6mm
    Depth
    0.8mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQM18PN_FR
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    750mA
    Inductance
    2.2 μH
    Package/Case
    0603 (1608M)
    Maximum DC Resistance
    300mΩ
    Core Material
    Ferrite
    Inductor Construction
    Multilayer
    Moulded
    Yes
