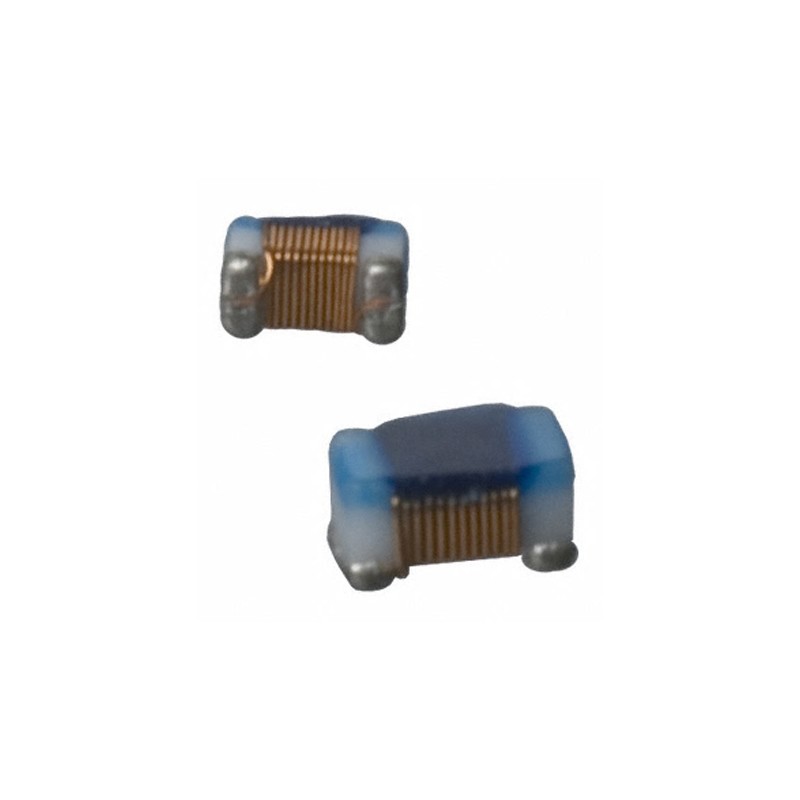

    100 pcs - LQW2BAS10NJ00L Murata, LQW2BAS_00, 2015 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 0.01 μH ±5% Wire-Wound
    • 100 pcs - LQW2BAS10NJ00L Murata, LQW2BAS_00, 2015 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 0.01 μH ±5% Wire-Wound

    100 pcs - LQW2BAS10NJ00L Murata, LQW2BAS_00, 2015 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 0.01 μH ±5% Wire-Wound

    100(electronicparts)1065376
    MURATA
    100 pcs - LQW2BAS10NJ00L Murata, LQW2BAS_00, 2015 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 0.01 μH ±5% Wire-Wound 600mA Idc Q:60
    £24.65
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LQW21AS Series SMD Chip InductorsMurata LQW Series wire wound RF inductors incorporates a high Q value giving great attenuation characteristics inside the pass band of the filters. These LQW inductors are used in matching applications of antennas for maintaining the reception and transmission sensitivity of the antennas. The LQW has low Rdc characteristics and can be employed in choke circuits where high current levels flow.FeaturesThere are two types of structure available for different applications High Q value Large currents can be supported Low DC resistanceMurata Non Standard SMT Inductors (Chokes)
    Product Details
    MURATA
    100(electronicparts)1065376
    LQW2BAS10NJ00L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±5%
    Dimensions
    2.09 x 1.53 x 1.42mm
    Height
    1.42mm
    Length
    2.09mm
    Depth
    1.53mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQW2BAS_00
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    600mA
    Inductance
    0.01 μH
    Package/Case
    2015
    Maximum DC Resistance
    100mΩ
    Core Material
    Non-Magnetic Core
    Inductor Construction
    Wire-Wound
    Minimum Quality Factor
    60
    Moulded
    Yes
