    100 pcs - LQH2HPZ6R8MJRL Murata, LQH, 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.05A Id
    • 100 pcs - LQH2HPZ6R8MJRL Murata, LQH, 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.05A Id

    100 pcs - LQH2HPZ6R8MJRL Murata, LQH, 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.05A Id

    100(electronicparts)8790742
    MURATA

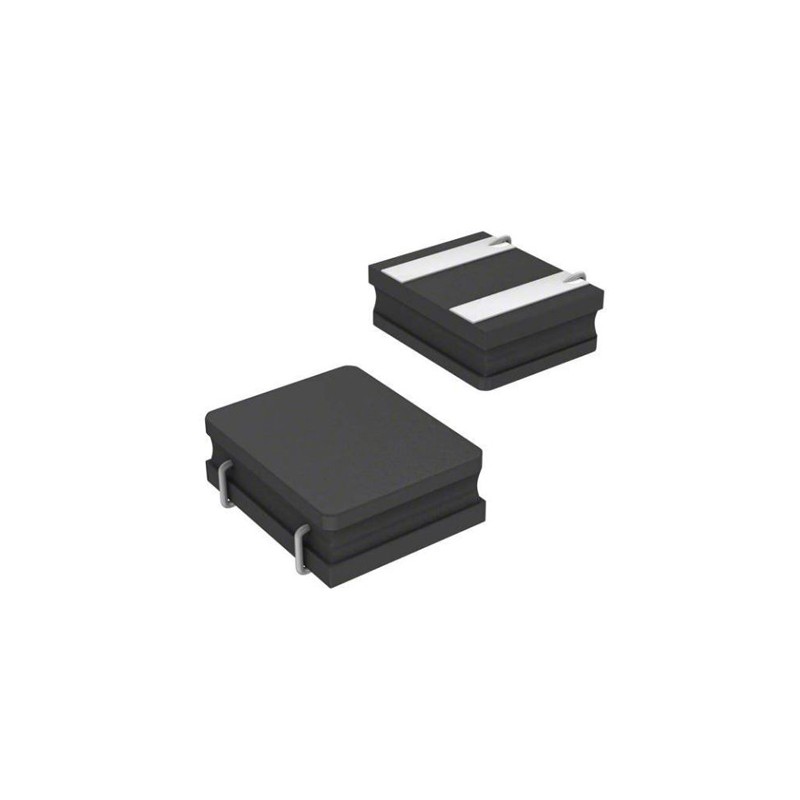

    100 pcs - LQH2HPZ6R8MJRL Murata, LQH, 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.05A Idc
    £65.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LQH2HP Series SMD Chip InductorsMurata LQH Series Wirewound Inductors are used for their high inductance and low DC resistance features. The series is composed of a ferrite core around which a copper wire is wound. Many models are resin-coated for added strength. LQH inductors are ideal for use in large current and high inductance applications such as mobile phones, TV, and digital cameras.Murata Non Standard SMT Inductors (Chokes)
    Product Details
    MURATA
    100(electronicparts)8790742
    LQH2HPZ6R8MJRL
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±20%
    Dimensions
    2.5 x 2 x 1.1mm
    Height
    1.1mm
    Length
    2.5mm
    Depth
    2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQH
    Maximum Operating Temperature
    (Ambient) +105 °C, (Product) +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    1.05A
    Inductance
    6.8 μH
    Package/Case
    2520
    Maximum DC Resistance
    310mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    Minimum of 35MHz
    Moulded
    Yes
