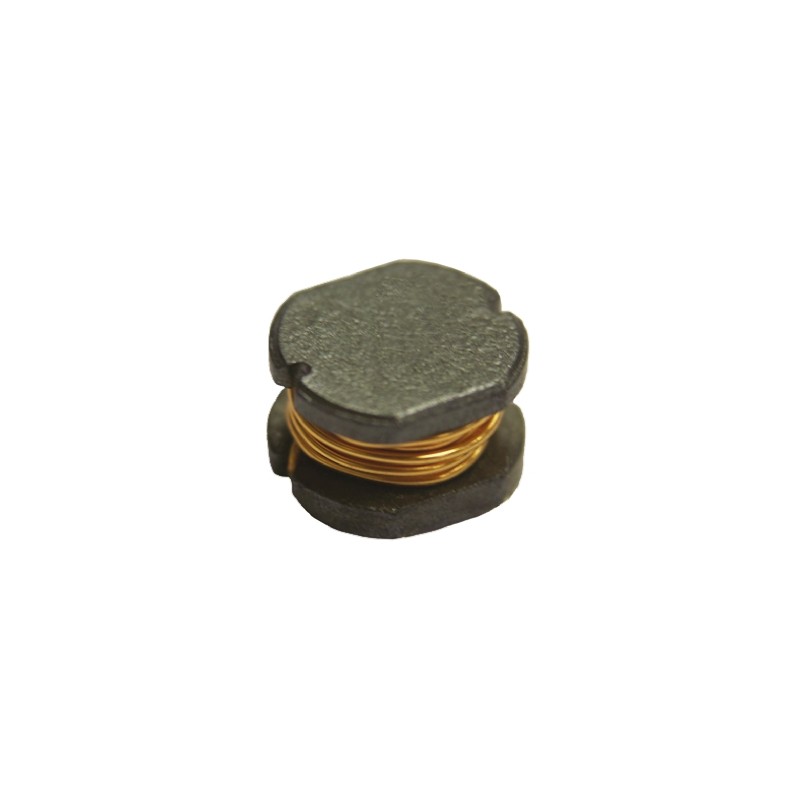

100 pcs - RS PRO, 75 Unshielded Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 1.1A Idc
    • 100 pcs - RS PRO, 75 Unshielded Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 1.1A Idc

    100 pcs - RS PRO, 75 Unshielded Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 1.1A Idc

    100(electronicparts)7409669
    RS PRO
    100 pcs - RS PRO, 75 Unshielded Wire-wound SMD Inductor 47 μH ±10% Wire-Wound 1.1A Idc
    £58.88
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    RS Pro Wire Wound ChokesRS Pro unshielded surface mount power inductors feature high currents (up to 4 Amps) and high inductance (up to 680 μH) while maintaining a small form factor. These surface mount power inductors are Pb-Free compatible and are suitable for both flow and reflow soldering. Applications include DC-DC converters and DC-AC inverters.High current, small size (up to 4 amps)Surface mountable constructionHigh inductance (up to 680μh)For use in DC/DC converters, DC/AC invertersPb-free compatible
    Product Details
    RS PRO
    100(electronicparts)7409669
    10 Items

    Data sheet

    Manufacturer
    RS PRO
    Tolerance
    ±10%
    Dimensions
    7.8 x 7 x 5mm
    Height
    5mm
    Length
    7.8mm
    Depth
    7mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    NPI75C
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    1.1A
    Inductance
    47 μH
    Package/Case
    75
    Maximum DC Resistance
    180mΩ
    Inductor Construction
    Wire-Wound
