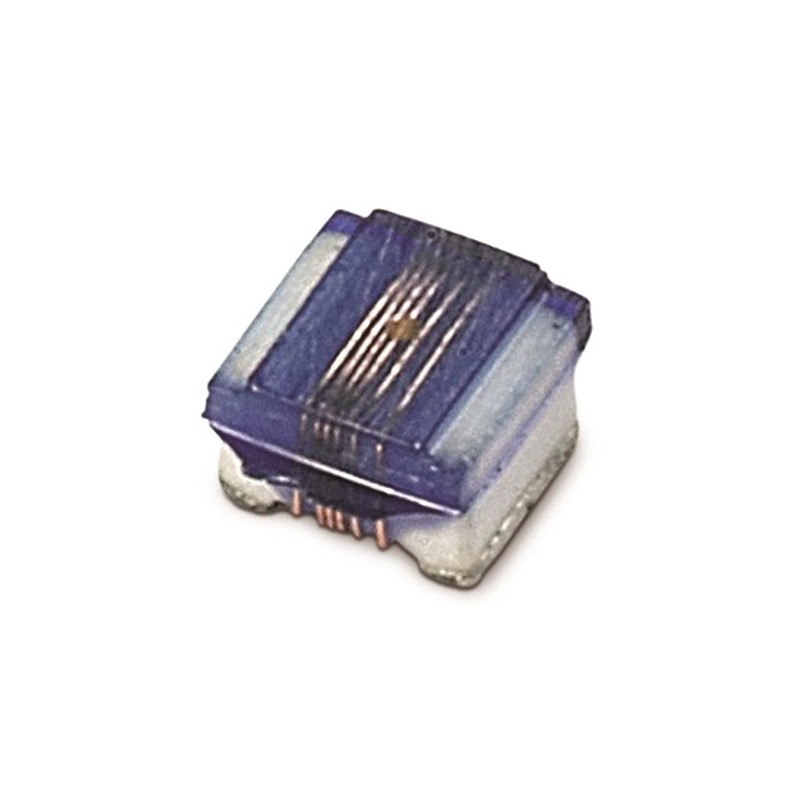

    100 pcs - 744760082A Wurth, WE-KI, 0805 (2012M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 8.2 nH ±5% Wire-Wound 60
    • 100 pcs - 744760082A Wurth, WE-KI, 0805 (2012M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 8.2 nH ±5% Wire-Wound 60

    100 pcs - 744760082A Wurth, WE-KI, 0805 (2012M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 8.2 nH ±5% Wire-Wound 60

    100(electronicparts)7373223
    100 pcs - 744760082A Wurth, WE-KI, 0805 (2012M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 8.2 nH ±5% Wire-Wound 600mA Idc Q:60
    £52.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0805 WE-KI Series Wirewound Ceramic InductorsWurth WE-KI Series 0805 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these products.
    Product Details
    Wurth Elektronik
    100(electronicparts)7373223
    744760082A
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±5%
    Dimensions
    2 x 1.25 x 1.2mm
    Height
    1.2mm
    Length
    2mm
    Depth
    1.25mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-KI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    600mA
    Inductance
    8.2 nH
    Package/Case
    0805 (2012M)
    Maximum DC Resistance
    60mΩ
    Core Material
    Ceramic
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    5.5GHz
    Minimum Quality Factor
    60
