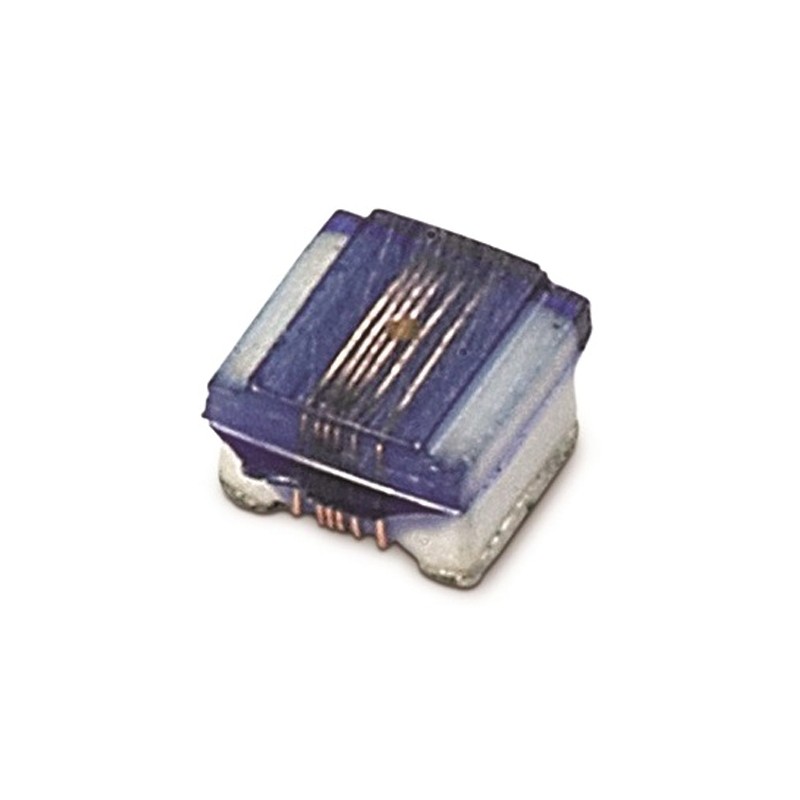

    100 pcs - 744761115A Wurth, WE-KI, 0603 (1608M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 15 nH ±5% Wire-Wound 700
    • 100 pcs - 744761115A Wurth, WE-KI, 0603 (1608M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 15 nH ±5% Wire-Wound 700

    100 pcs - 744761115A Wurth, WE-KI, 0603 (1608M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 15 nH ±5% Wire-Wound 700

    100(electronicparts)7373383
    100 pcs - 744761115A Wurth, WE-KI, 0603 (1608M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 15 nH ±5% Wire-Wound 700mA Idc Q:35
    £52.12
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0603 WE-KI Series Wirewound Ceramic InductorsWurth WE-KI Series 0603 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these ceramic inductors.
    Product Details
    Wurth Elektronik
    100(electronicparts)7373383
    744761115A
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±5%
    Dimensions
    1.6 x 1.05 x 1.05mm
    Height
    1.05mm
    Length
    1.6mm
    Depth
    1.05mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-KI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    700mA
    Inductance
    15 nH
    Package/Case
    0603 (1608M)
    Maximum DC Resistance
    170mΩ
    Core Material
    Ceramic
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    4GHz
    Minimum Quality Factor
    35
