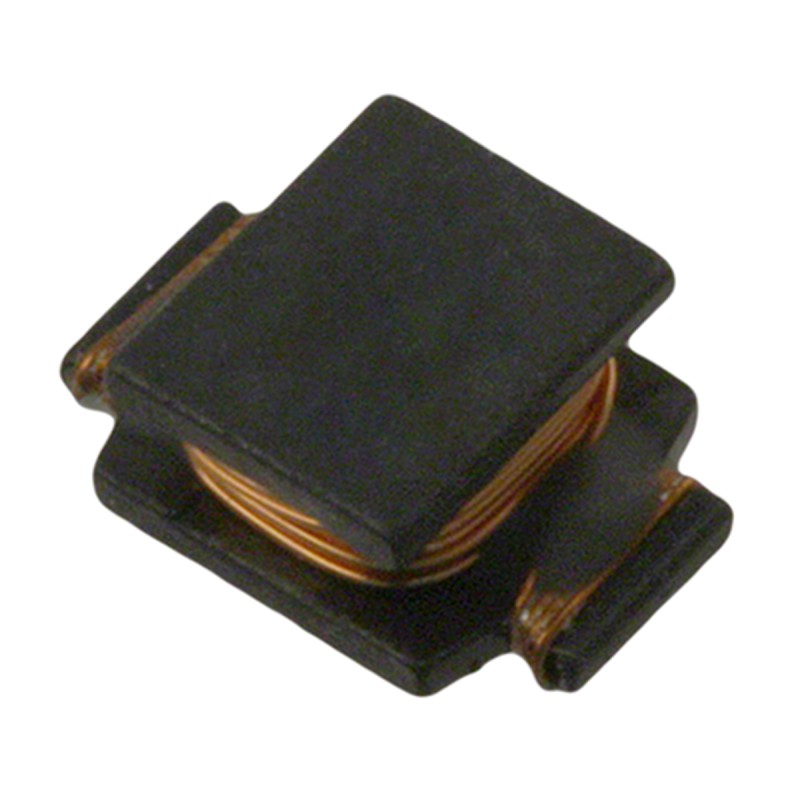

    100 pcs - SDR0703-100KL Bourns, SDR0703, E12 Wire-wound SMD Inductor with a Ferrite Core, 10 μH ± 10% Wire-Wound 1.4A Idc Q:23
    • 100 pcs - SDR0703-100KL Bourns, SDR0703, E12 Wire-wound SMD Inductor with a Ferrite Core, 10 μH ± 10% Wire-Wound 1.4A Idc Q:23

    100 pcs - SDR0703-100KL Bourns, SDR0703, E12 Wire-wound SMD Inductor with a Ferrite Core, 10 μH ± 10% Wire-Wound 1.4A Idc Q:23

    100(electronicparts)8749807
    BOURNS
    100 pcs - SDR0703-100KL Bourns, SDR0703, E12 Wire-wound SMD Inductor with a Ferrite Core, 10 μH ± 10% Wire-Wound 1.4A Idc Q:23
    £61.42
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SDR0703 Series Wire Wound ChokesAvailable in E12 seriesLow height of only 2.7 mmHigh Saturation Current of 3.2 AmpsRoHS compliantApplications in Input/output of DC/DC converters and Power supplies for: Portable communication equipment, Camcorders, LCD TVs and Car radiosAvailable in E12 seriesLow height of only 2.7 mmHigh Isat of 3.2 ampsApplicationsInput/output of DC/DC convertersPower supplies for:Portable communications equipment Camcorders LCD Tvs
    Product Details
    BOURNS
    100(electronicparts)8749807
    SDR0703-100KL
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Tolerance
    ± 10%
    Dimensions
    6.5 x 4.5 x 2.7mm
    Height
    2.7mm
    Length
    6.5mm
    Depth
    4.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    SDR0703
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    1.4A
    Inductance
    10 μH
    Package/Case
    E12
    Maximum DC Resistance
    170mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    36MHz
    Minimum Quality Factor
    23
