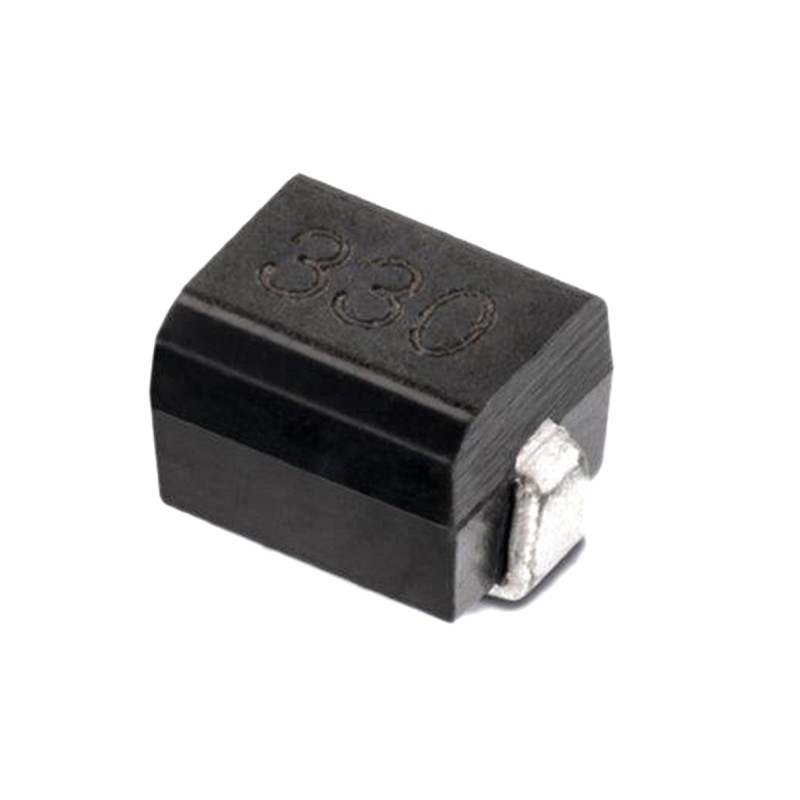

    100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30
    • 100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30
    • 100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30
    • 100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30

    100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30

    100(electronicparts)8997182
    100 pcs - 744764904 Wurth, WE-GFH, 3225 Wire-wound SMD Inductor with a Iron Core, 4.7 μH ±20% Moulded 800mA Idc Q:30
    £55.22
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth WE-GFH High Frequency SMD InductorsWurth Elektronik WE-GFH SMD inductors support a higher current than the standard form whilst maintaining a lower RDC for the same type. Offered in a compact size, this series feature chip SMD inductance. Suitable applications for these SMD inductors include acoustic filtering, HF filtering and HF circuits.Wurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    100(electronicparts)8997182
    744764904
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    2.9 x 2.5 x 2.2mm
    Height
    2.2mm
    Length
    2.9mm
    Depth
    2.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-GFH
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    800mA
    Inductance
    4.7 μH
    Package/Case
    3225
    Maximum DC Resistance
    520mΩ
    Core Material
    Iron
    Inductor Construction
    Moulded
    Maximum Self Resonant Frequency
    63MHz
    Minimum Quality Factor
    30
    Moulded
    Yes
