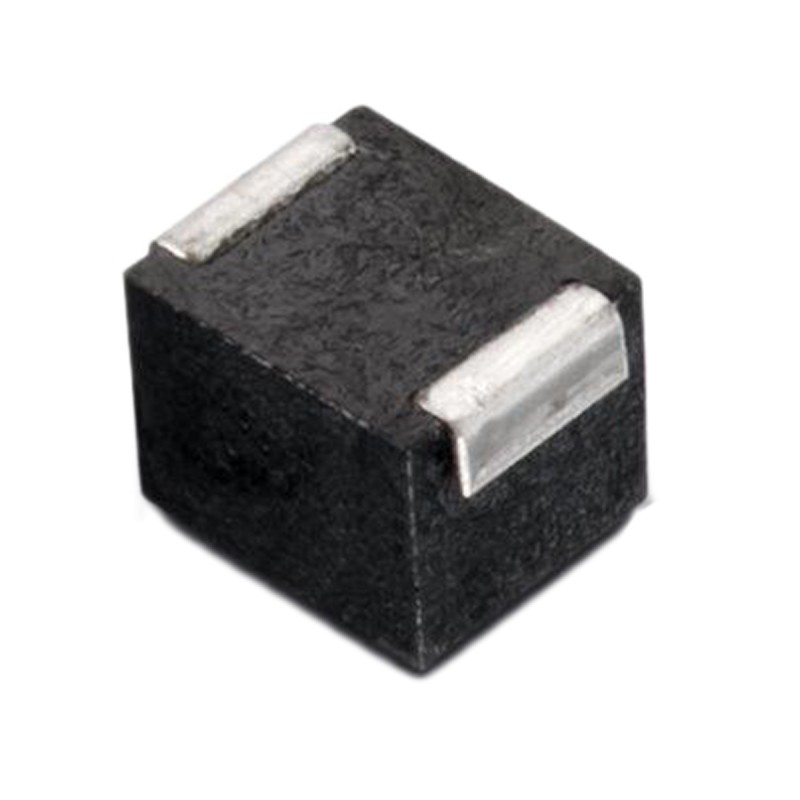

    100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20
    • 100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20
    • 100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20
    • 100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20

    100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20

    100(electronicparts)8997148
    100 pcs - 7447629022 Wurth, WE-GFH, 2520 Wire-wound SMD Inductor with a Iron Core, 2.2 μH ±20% Moulded 650mA Idc Q:20
    £55.22
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth WE-GFH High Frequency SMD InductorsWurth Elektronik WE-GFH SMD inductors support a higher current than the standard form whilst maintaining a lower RDC for the same type. Offered in a compact size, this series feature chip SMD inductance. Suitable applications for these SMD inductors include acoustic filtering, HF filtering and HF circuits.Wurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    100(electronicparts)8997148
    7447629022
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    2.5 x 2 x 1.8mm
    Height
    1.8mm
    Length
    2.5mm
    Depth
    2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-GFH
    Maximum Operating Temperature
    +105°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    650mA
    Inductance
    2.2 μH
    Package/Case
    2520
    Maximum DC Resistance
    600mΩ
    Core Material
    Iron
    Inductor Construction
    Moulded
    Maximum Self Resonant Frequency
    115MHz
    Minimum Quality Factor
    20
    Moulded
    Yes
