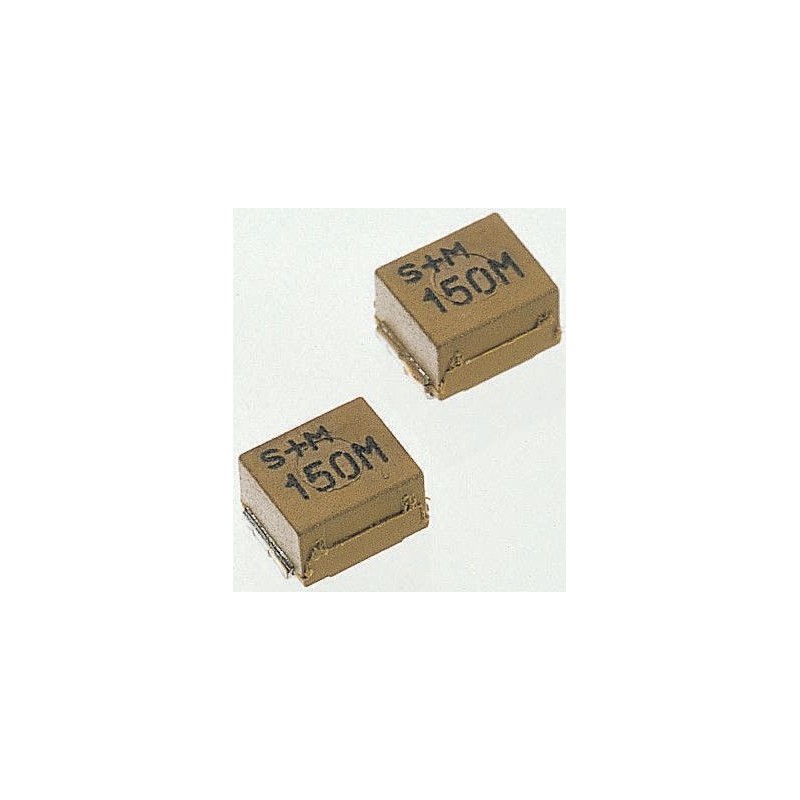

100 pcs - B82422H1223K000 EPCOS, SIMID, 1210 (3225M) Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±10% Wire-Wound 330mA Id
    • 100 pcs - B82422H1223K000 EPCOS, SIMID, 1210 (3225M) Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±10% Wire-Wound 330mA Id

    100 pcs - B82422H1223K000 EPCOS, SIMID, 1210 (3225M) Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±10% Wire-Wound 330mA Id

    100(electronicparts)7062872P
    EPCOS
    100 pcs - B82422H1223K000 EPCOS, SIMID, 1210 (3225M) Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±10% Wire-Wound 330mA Idc Q:12
    £51.19
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Epcos 1210 B82422H SIMID Series Wire Wound InductorsFrom Epcos, the SIMID Series Wire Wound Inductors features is capable of handling very high currents. With a flame retardant encapsulation, the SIMID series of wire wound inductors have a high temperature range, and are well suited to DC/DC converters and switch mode power supplies.Features and Benefits:• Laser welded winding• Ferrite drum core• Suitable for reflow soldering acc. JEDEC J STD 020C• Qualified to AEC-Q200
    Product Details
    EPCOS
    100(electronicparts)7062872P
    B82422H1223K000
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Tolerance
    ±10%
    Dimensions
    3.2 x 2.5 x 2.2mm
    Height
    2.2mm
    Length
    3.2mm
    Depth
    2.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    SIMID
    Maximum Operating Temperature
    +150°C
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    330mA
    Inductance
    22 μH
    Package/Case
    1210 (3225M)
    Maximum DC Resistance
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    21MHz
    Minimum Quality Factor
    12
    Moulded
    Yes
