    100 pcs - LQM21NNR56K10D Murata, LQM21N, 0805 (2012M) Multilayer Surface Mount Inductor with a Ferrite Core, 560 nH ±10% Multila
    • 100 pcs - LQM21NNR56K10D Murata, LQM21N, 0805 (2012M) Multilayer Surface Mount Inductor with a Ferrite Core, 560 nH ±10% Multila

    100 pcs - LQM21NNR56K10D Murata, LQM21N, 0805 (2012M) Multilayer Surface Mount Inductor with a Ferrite Core, 560 nH ±10% Multila

    100(electronicparts)7867087
    MURATA

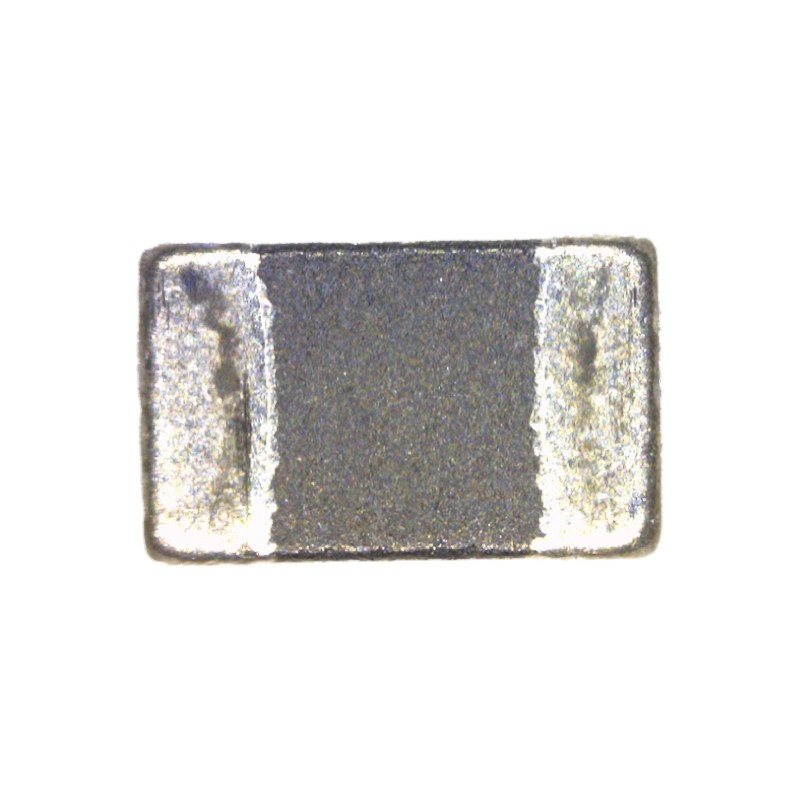

    100 pcs - LQM21NNR56K10D Murata, LQM21N, 0805 (2012M) Multilayer Surface Mount Inductor with a Ferrite Core, 560 nH ±10% Multilayer 150mA Idc
    £50.26
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 0805 LQW21N Series Magnetically Shielded Multilayer Chip InductorsLQM21 series of magnetically shielded chip inductors developed using Murata's original multilayer process technology and magnetic materials.The miniature size of 2.0x1.25mm enables compact design of electric equipment.
    Product Details
    MURATA
    100(electronicparts)7867087
    LQM21NNR56K10D
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±10%
    Dimensions
    2 x 1.25 x 0.85mm
    Height
    0.85mm
    Length
    2mm
    Depth
    1.25mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQM21N
    Maximum Operating Temperature
    +85°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    150mA
    Inductance
    560 nH
    Package/Case
    0805 (2012M)
    Maximum DC Resistance
    630mΩ
    Core Material
    Ferrite
    Inductor Construction
    Multilayer
    Maximum Self Resonant Frequency
    140MHz
    Minimum Quality Factor
    25
