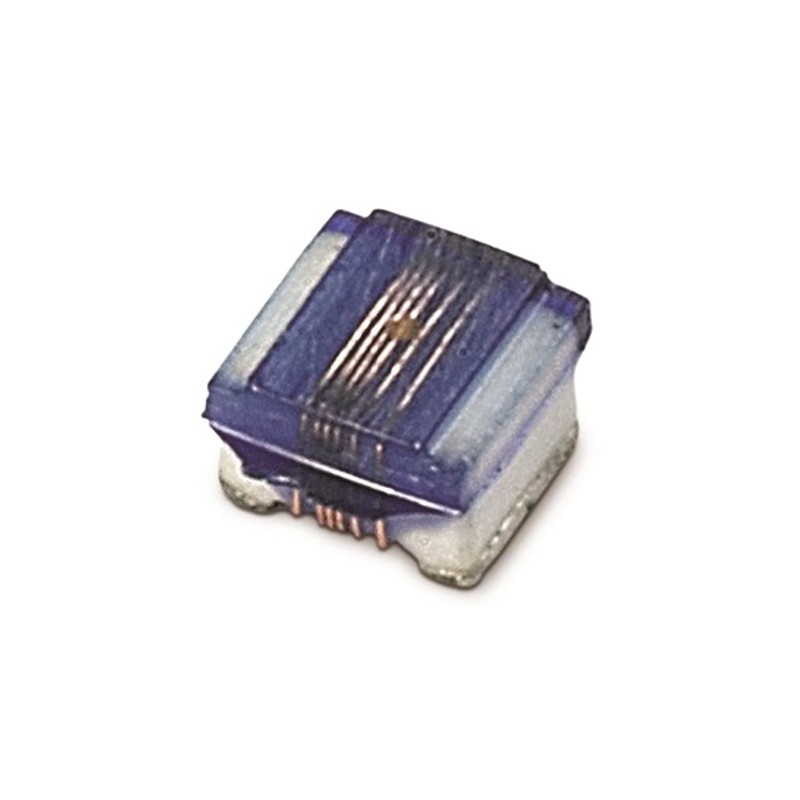

    100 pcs - 744765127A Wurth, WE-KI, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 27 nH ±5% Wire-Wound 400
    • 100 pcs - 744765127A Wurth, WE-KI, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 27 nH ±5% Wire-Wound 400

    100 pcs - 744765127A Wurth, WE-KI, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 27 nH ±5% Wire-Wound 400

    100(electronicparts)7373579
    100 pcs - 744765127A Wurth, WE-KI, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ceramic Core, 27 nH ±5% Wire-Wound 400mA Idc Q:26
    £49.95
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0402 WE-KI Series Wirewound Ceramic InductorsWurth WE-KI Series 0402 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these products.
    Product Details
    Wurth Elektronik
    100(electronicparts)7373579
    744765127A
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±5%
    Dimensions
    1 x 0.55 x 0.5mm
    Height
    0.5mm
    Length
    1mm
    Depth
    0.55mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-KI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    400mA
    Inductance
    27 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    298mΩ
    Core Material
    Ceramic
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    2.48GHz
    Minimum Quality Factor
    26
