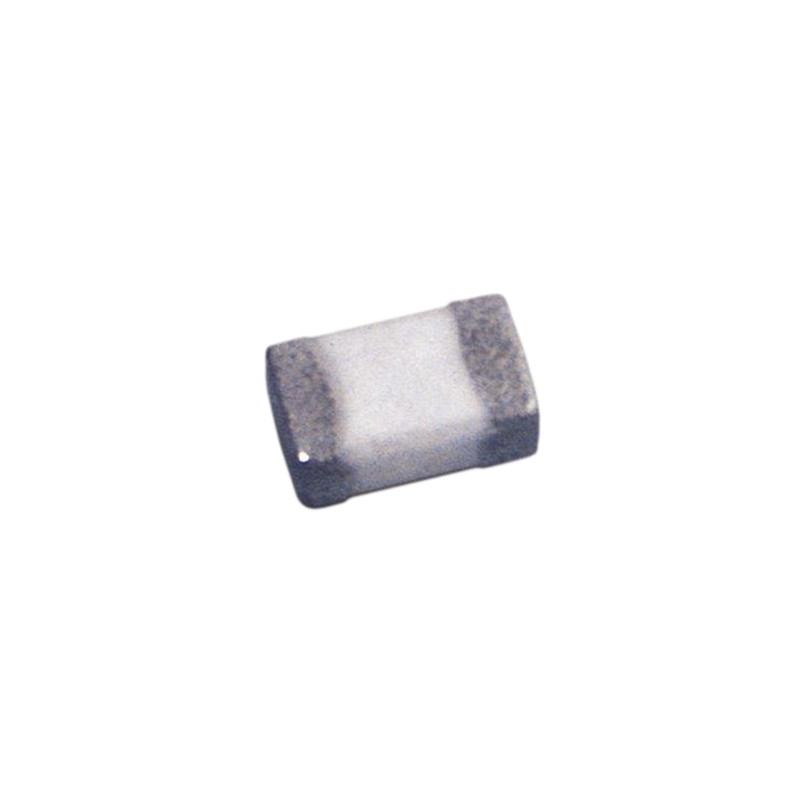

    100 pcs - 744782033 Wurth, WE-MK, 0201 (0603M) Multilayer Surface Mount Inductor with a Ceramic Core, 3.3 nH Multilayer 300mA Id
    • 100 pcs - 744782033 Wurth, WE-MK, 0201 (0603M) Multilayer Surface Mount Inductor with a Ceramic Core, 3.3 nH Multilayer 300mA Id

    100 pcs - 744782033 Wurth, WE-MK, 0201 (0603M) Multilayer Surface Mount Inductor with a Ceramic Core, 3.3 nH Multilayer 300mA Id

    100(electronicparts)8830155
    100 pcs - 744782033 Wurth, WE-MK, 0201 (0603M) Multilayer Surface Mount Inductor with a Ceramic Core, 3.3 nH Multilayer 300mA Idc Q:19
    £31.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0201 WE-MK Series Multilayer Ceramic InductorsWurth WE-MK Series 0201 multilayer ceramic inductors are suitable for use in high frequency circuits. The windings are printed on ceramic substrate. These inductors offer stable inductance over temperature, inductive tolerances of 5%, ±0.3 nH and an high self-resonant frequency. Reflow or wave soldering is recommended for this series.Ideal applications for these SMD inductors include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits.
    Product Details
    Wurth Elektronik
    100(electronicparts)8830155
    744782033
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Dimensions
    0.6 x 0.3 x 0.3mm
    Height
    0.3mm
    Length
    0.6mm
    Depth
    0.3mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-MK
    Maximum Operating Temperature
    +120°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    300mA
    Inductance
    3.3 nH
    Package/Case
    0201 (0603M)
    Maximum DC Resistance
    380mΩ
    Core Material
    Ceramic
    Inductor Construction
    Multilayer
    Maximum Self Resonant Frequency
    7.5GHz
    Minimum Quality Factor
    19
    Moulded
    Yes
