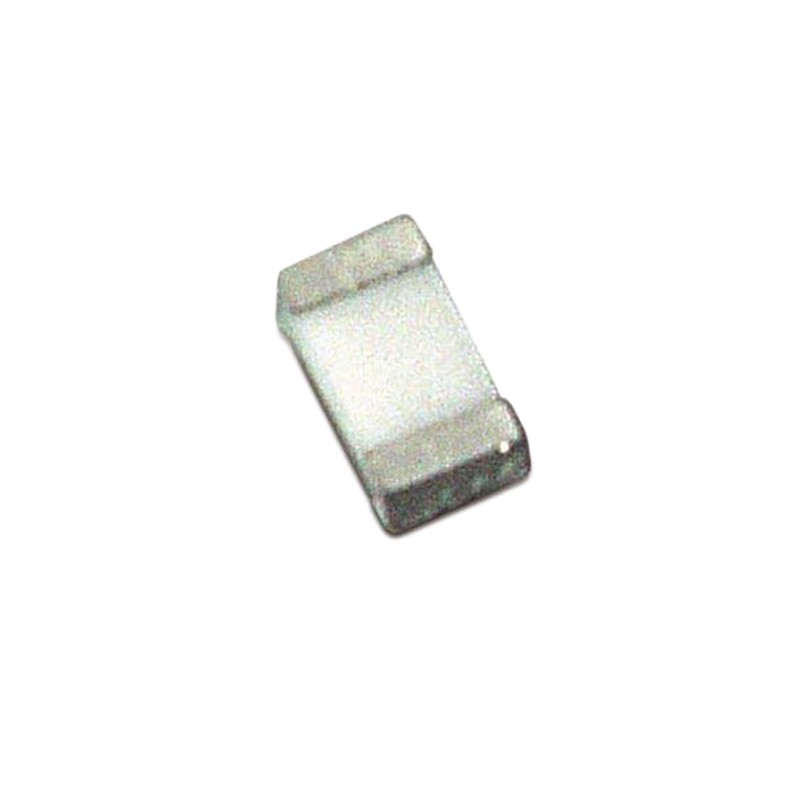

    100 pcs - 744901012 Wurth, WE-TCI, 0402 (1005M) Shielded Wire-wound SMD Inductor with a Thin Film Core, 1.2 nH ±0.1nH Film 700mA
    • 100 pcs - 744901012 Wurth, WE-TCI, 0402 (1005M) Shielded Wire-wound SMD Inductor with a Thin Film Core, 1.2 nH ±0.1nH Film 700mA

    100 pcs - 744901012 Wurth, WE-TCI, 0402 (1005M) Shielded Wire-wound SMD Inductor with a Thin Film Core, 1.2 nH ±0.1nH Film 700mA

    100(electronicparts)8830578
    100 pcs - 744901012 Wurth, WE-TCI, 0402 (1005M) Shielded Wire-wound SMD Inductor with a Thin Film Core, 1.2 nH ±0.1nH Film 700mA Idc Q:13
    £31.76
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth 0402 WE-TCI Series Thin Film Chip InductorsWurth WE-TCI Series 0402 thin film chip inductors offer outstanding temperature stability and small inductance values. In addition, the inductance is very stable in high frequency circuits. These thin film inductors also provide tight tolerances of 2% and a high self resonant frequency. Reflow soldering is recommended for this series.Suitable applications for WE-TCI chip inductors include pagers, mobile phones, wireless LAN, GPS products, communication appliances and RF transceiver modules
    Product Details
    Wurth Elektronik
    100(electronicparts)8830578
    744901012
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±0.1nH
    Dimensions
    1 x 0.5 x 0.32mm
    Height
    0.32mm
    Length
    1mm
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-TCI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    700mA
    Inductance
    1.2 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    100mΩ
    Core Material
    Thin Film
    Inductor Construction
    Film
    Maximum Self Resonant Frequency
    12GHz
    Minimum Quality Factor
    13
