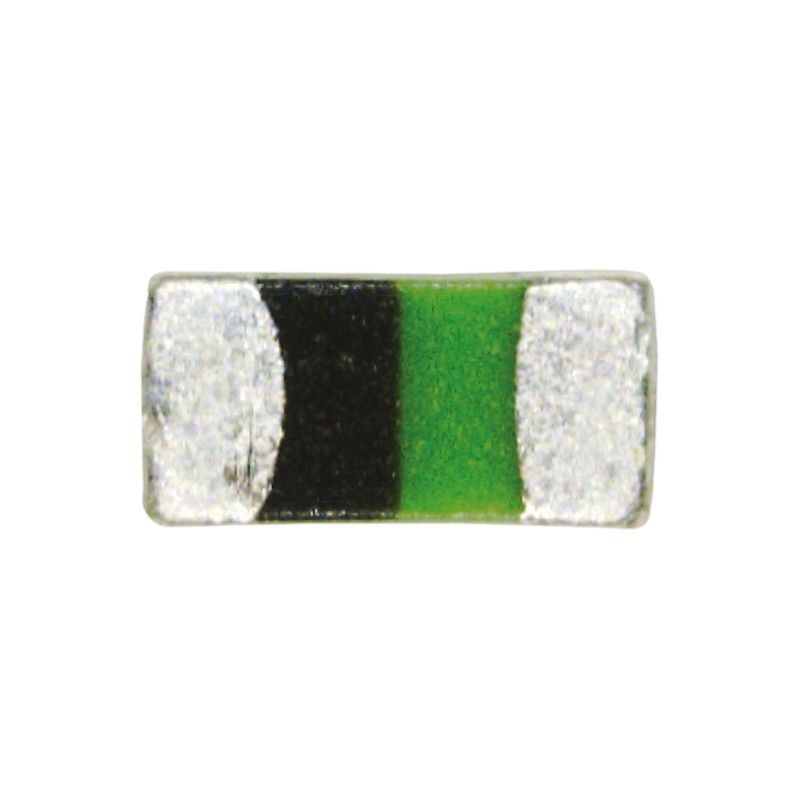

100 pcs - LQG15HN10NJ02D Murata, LQG15HN, 0402 (1005M) Wire-wound SMD Inductor 10 nH ±5% Wire-Wound 300mA Idc Q:8
    • 100 pcs - LQG15HN10NJ02D Murata, LQG15HN, 0402 (1005M) Wire-wound SMD Inductor 10 nH ±5% Wire-Wound 300mA Idc Q:8

    100 pcs - LQG15HN10NJ02D Murata, LQG15HN, 0402 (1005M) Wire-wound SMD Inductor 10 nH ±5% Wire-Wound 300mA Idc Q:8

    100(electronicparts)7254829P
    MURATA
    100 pcs - LQG15HN10NJ02D Murata, LQG15HN, 0402 (1005M) Wire-wound SMD Inductor 10 nH ±5% Wire-Wound 300mA Idc Q:8
    £20.45
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 0402 LQG15HN Series High Frequency Chip InductorsLQG15HN SMD inductors from Murata feature a multilayer construction. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance.Can be used in high frequency circuitsExcellent stability at high frequenciesMonolithic structure
    Product Details
    MURATA
    100(electronicparts)7254829P
    LQG15HN10NJ02D
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±5%
    Dimensions
    1 x 0.5 x 0.5mm
    Height
    0.5mm
    Length
    1mm
    Depth
    0.5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQG15HN
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -55°C
    Maximum DC Current
    300mA
    Inductance
    10 nH
    Package/Case
    0402 (1005M)
    Maximum DC Resistance
    350mΩ
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    3.2GHz
    Minimum Quality Factor
    8
