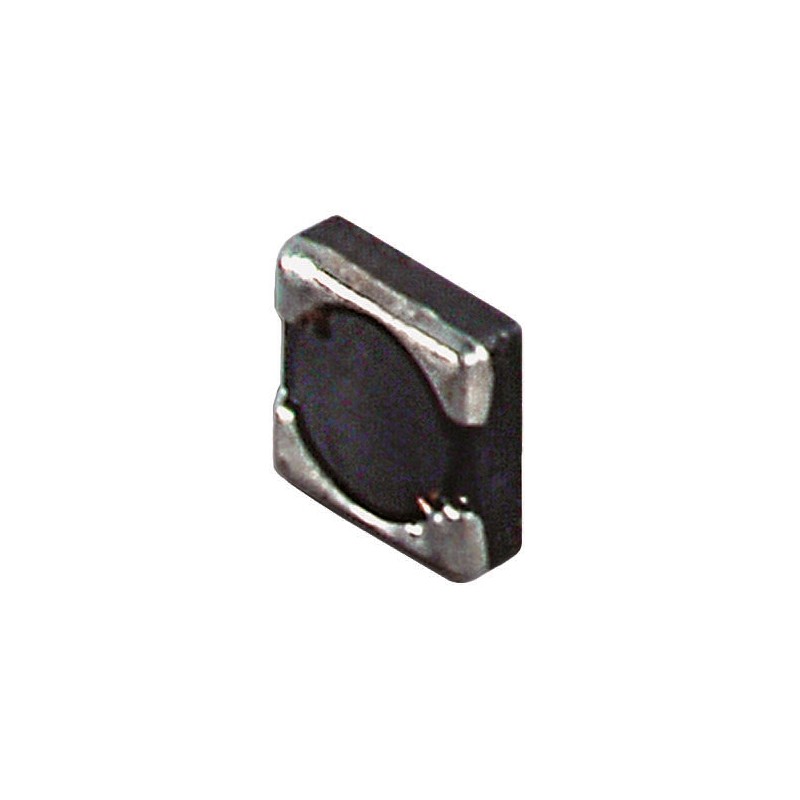

    50 pcs - 744052100 Wurth, WE-TPC, 5818 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 1.1A Idc
    • 50 pcs - 744052100 Wurth, WE-TPC, 5818 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 1.1A Idc

    50 pcs - 744052100 Wurth, WE-TPC, 5818 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 1.1A Idc

    50(electronicparts)6690227
    50 pcs - 744052100 Wurth, WE-TPC, 5818 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 1.1A Idc
    £54.98
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-TPC Series 5.8mm Square Magnetically Shielded Wire Wound ChokesWE-TPC Series is extremely flat power inductor with high current capabilityMagnetically shielded which results in a low leakage fieldOperating temperature: –40 to +125°CApplications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays), DC/DC converter, Embedded PC, Mobile data gathering, telemetricWurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    50(electronicparts)6690227
    744052100
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±30%
    Dimensions
    5.8 x 5.8 x 1.8mm
    Height
    1.8mm
    Length
    5.8mm
    Depth
    5.8mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-TPC
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    1.1A
    Inductance
    10 μH
    Package/Case
    5818
    Maximum DC Resistance
    130mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    40MHz
