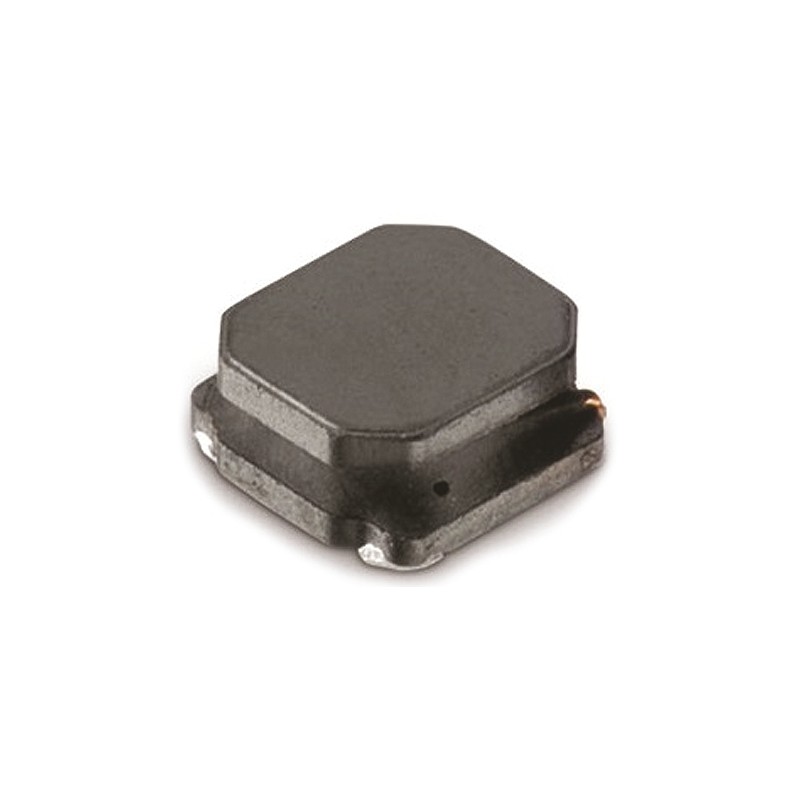

50 pcs - 74404024220 Wurth, WE-LQS, 252012 Shielded Wire-wound SMD Inductor 22 μH ±20% Semi-Shielded 450mA Idc
    • 50 pcs - 74404024220 Wurth, WE-LQS, 252012 Shielded Wire-wound SMD Inductor 22 μH ±20% Semi-Shielded 450mA Idc

    50 pcs - 74404024220 Wurth, WE-LQS, 252012 Shielded Wire-wound SMD Inductor 22 μH ±20% Semi-Shielded 450mA Idc

    50(electronicparts)8142452
    50 pcs - 74404024220 Wurth, WE-LQS, 252012 Shielded Wire-wound SMD Inductor 22 μH ±20% Semi-Shielded 450mA Idc
    £47.78
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-LQS Series Magnetically Shielded Power InductorsWurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.ApplicationsMagnetically shieldedLow RDCWurth Non Standard SMT Inductors (Chokes)
    Product Details
    50(electronicparts)8142452
    74404024220
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    2.5 x 2 x 1.2mm
    Height
    1.2mm
    Length
    2.5mm
    Depth
    2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-LQS
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    450mA
    Inductance
    22 μH
    Package/Case
    252012
    Maximum DC Resistance
    910mΩ
    Inductor Construction
    Semi-Shielded
    Maximum Self Resonant Frequency
    11MHz
